Product Description

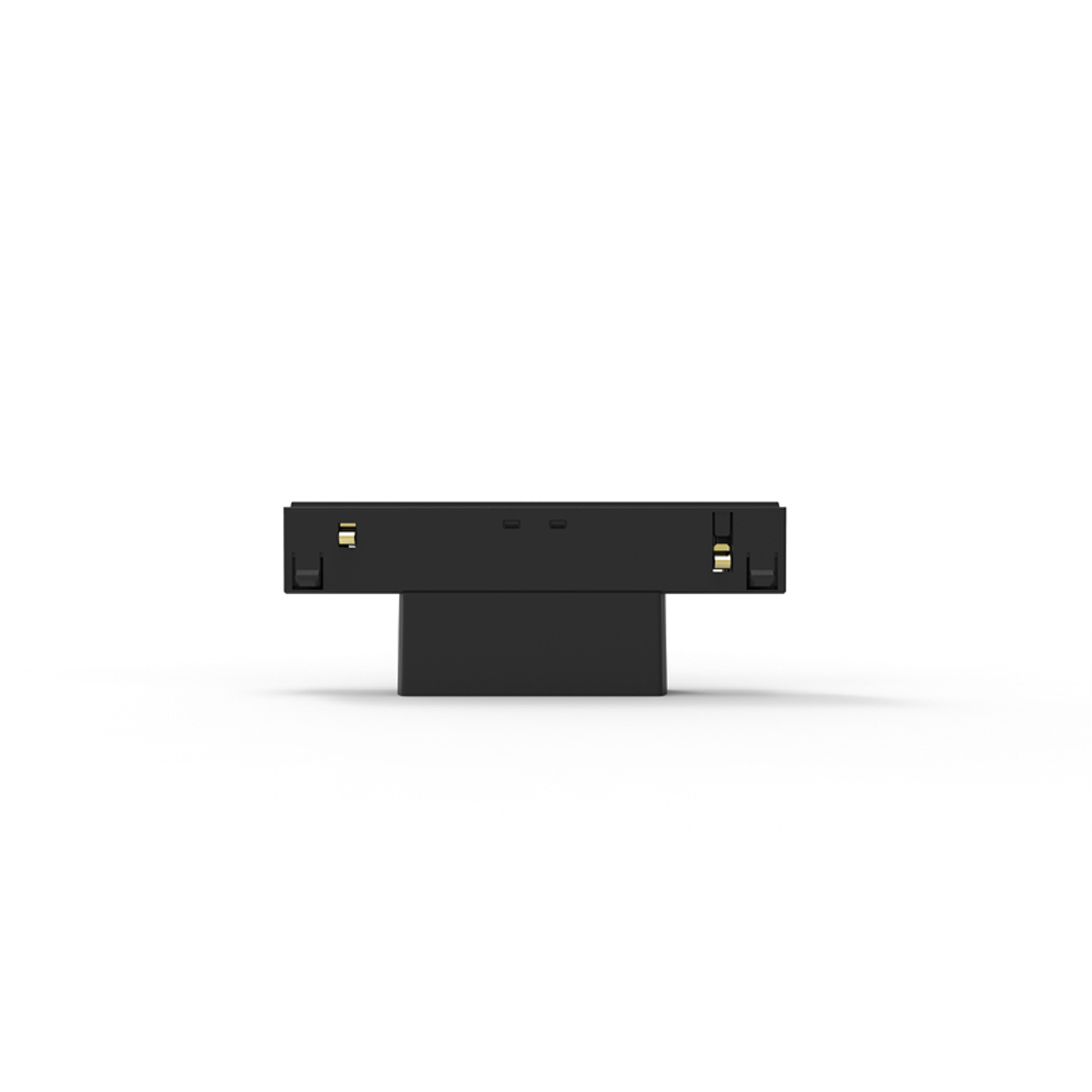

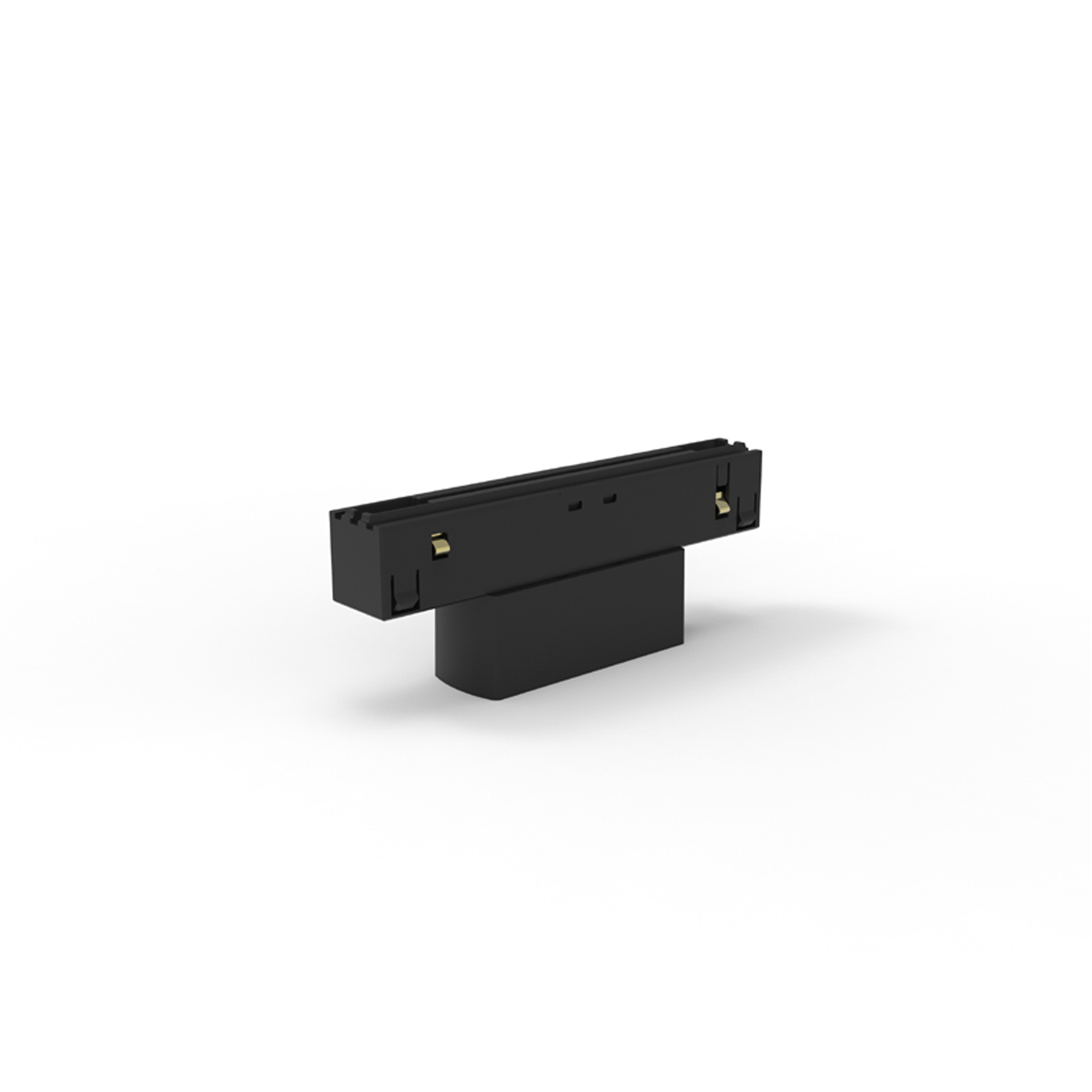

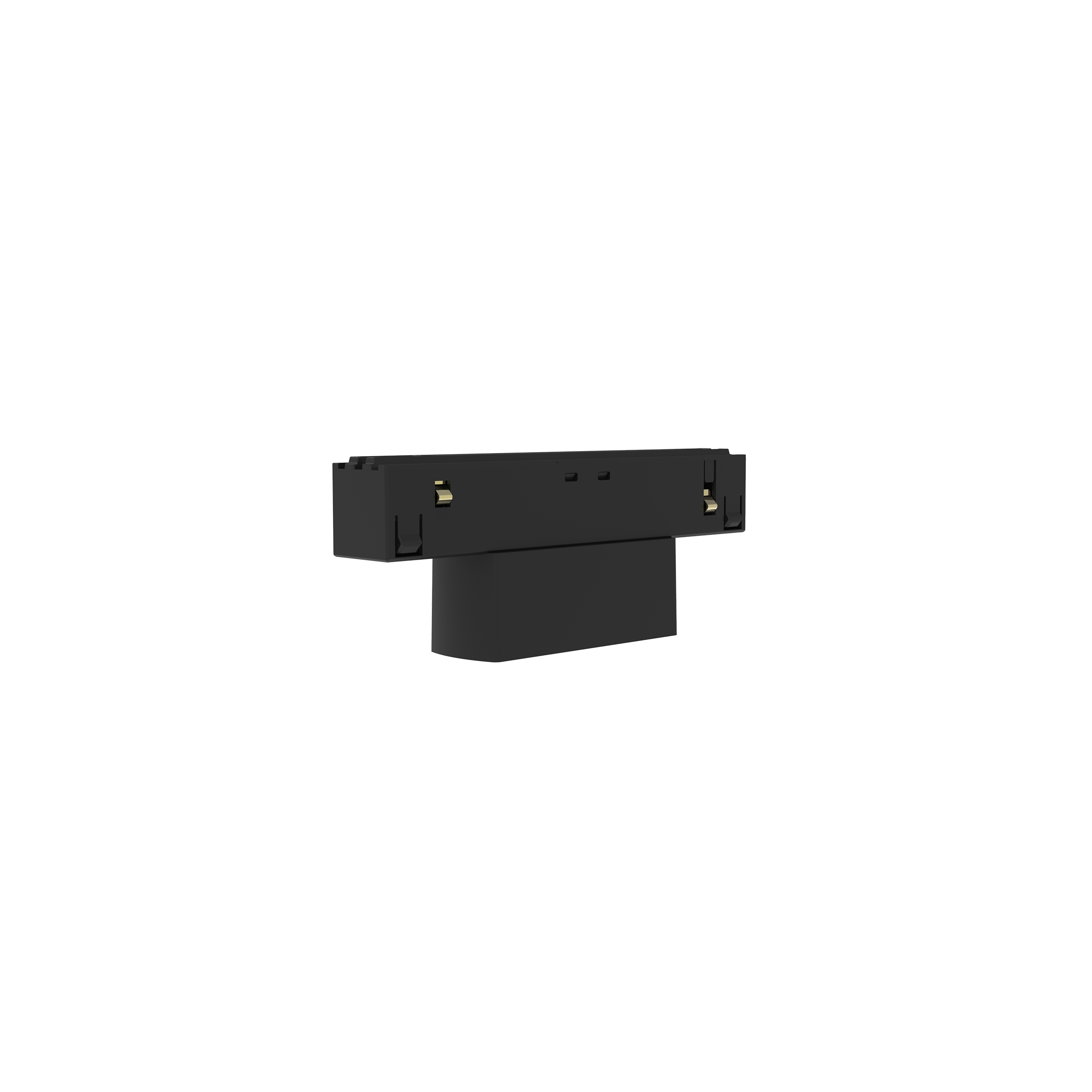

“VBU-D-ITL” is a Casambi to DALI control device.It uses Bluetooth Low Energy communication to receive a command signal from the Casambi App and convert the command into DALI commands according to the selected fixture profile. Also,VBU-D-ITL has an integrated DALI bus power supply with 20mA guaranteed current,it can control up to 8 DALI LED drivers individually or by group.
Functions
• Can control DT6 or DT8.
• Can control up to 8 DALI drivers.
• Can control DALI drivers individually or by group.
Features
• Works with casambi.
• Connect casambi and DALI.
• Short-circuit / no-load / overload protection
• High flexibility，each driver can be an independent intelligent luminaire or a part of group.
Technical data
Rated supply voltage | 48 Vdc | |
Input frequency | 50 … 60 Hz | |
Input current | ≤ 10 mA | |
Power consumption standby | < 0,5W | |
Output control interface | DALI | |
Max. number of drivers connected | 8 | |
Firmware update | OTA (Over The Air) | |
Protections | Short circuit protection ，Overload protection，No-load protection | |
Operating temperature range | -20ºC … +40ºC | |
Max. casing temperature tc | 50℃ | |
Storage Temperature | -20ºC … +80ºC | |
DALI | Bus voltage | 14-16 VDC |
Guaranteed current | 20mA | |
Maximum current | 60mA | |
RF | Communication interface | BLE |
Communication protocol | Casambi | |
Operating frequencies | 2402–2480 MHz | |
Max. transmission power | +7 dBm | |
IP | IP20 | |
Dimensions | L* W * H：98*38*19.3mm | |
Certifications | CE | |
