VBA-MDS-C

Description

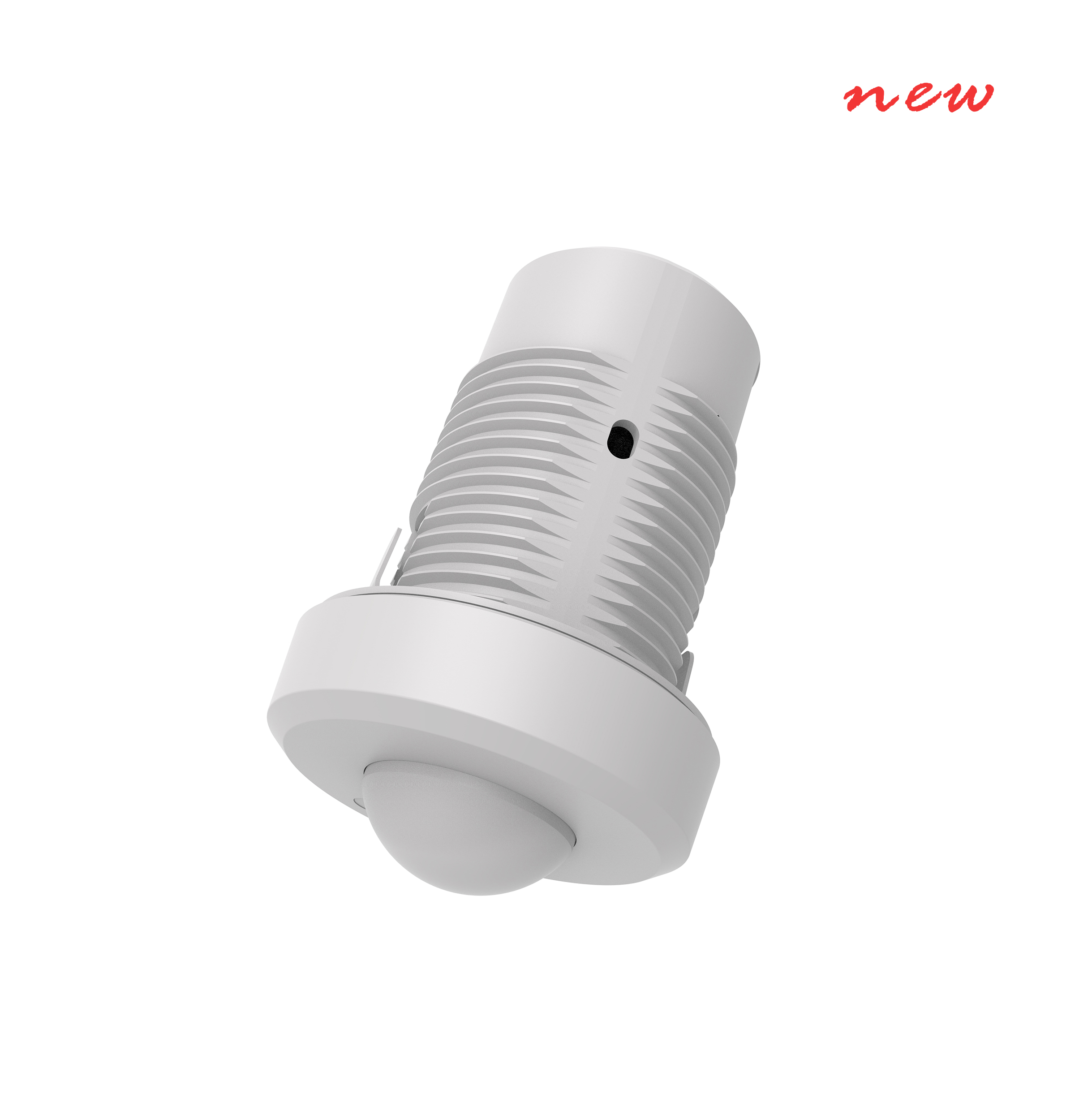

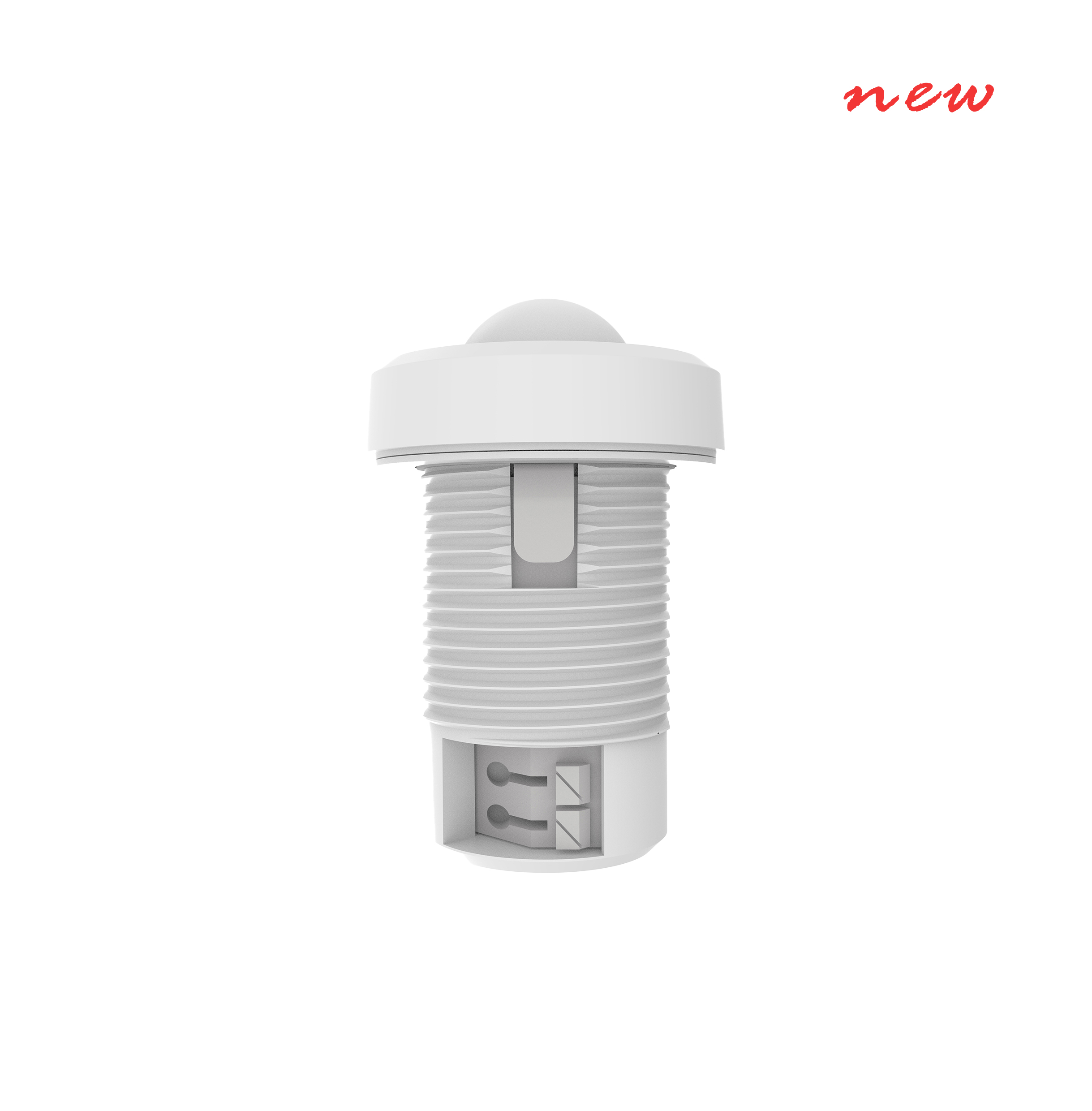

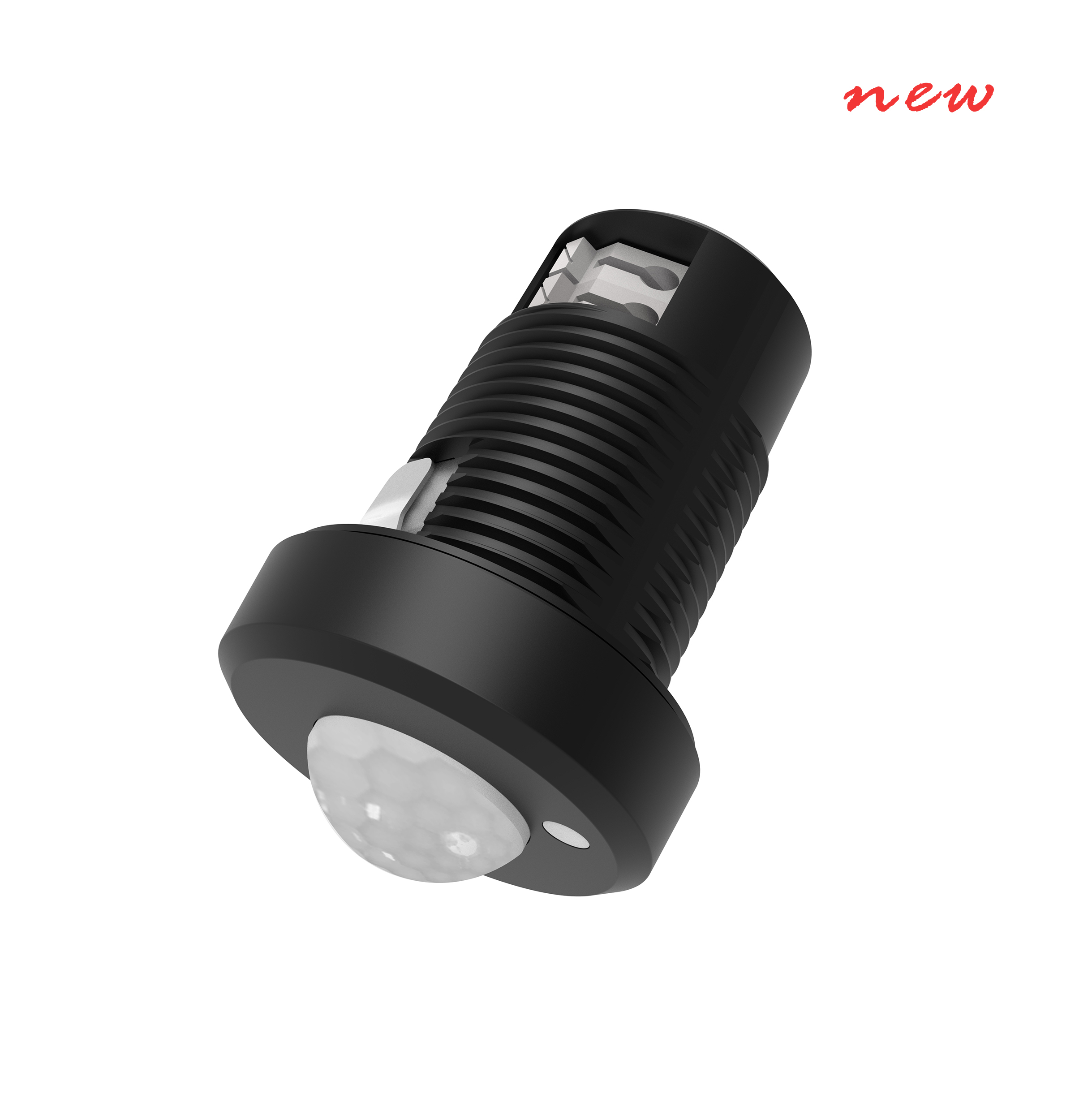

VBA-MDS-C is a Casambi-enabled intelligent wireless multifunctional sensor that combing PIR motion detection,ambient daylight sensing, and DALI control capabilites.It enables automated and app-controlled lighting via the Casambi App. It complies with Zhaga 20 dimensional specifications.

Features and Benefits

Each VBA-MDS-C product can operate in various roles according to the chosen profile. It is possible to change the profile of an unpaired device using the Casambi App. Page 8-9 are listed the fixture profile options for the VBA-MDS-C.

Technical parameter

• Input Voltage:12-22.5 Vdc

• Average input current:10mA

• Peak input current:30mA

• Maximum output power, PRF:+7 dBm

• Radio frequency:2.4 GHz

• Range:50m: (Line of sight)

• Wireless protocl: Bluetooth provided by casambi

• Control:Bluetooth

• Dimming Control:DALI2

• Individual addressing:8 addresses

• Group addressing:8 groups (max 64 dali drivers,depends on the specifications of DALI bus powersupply)
