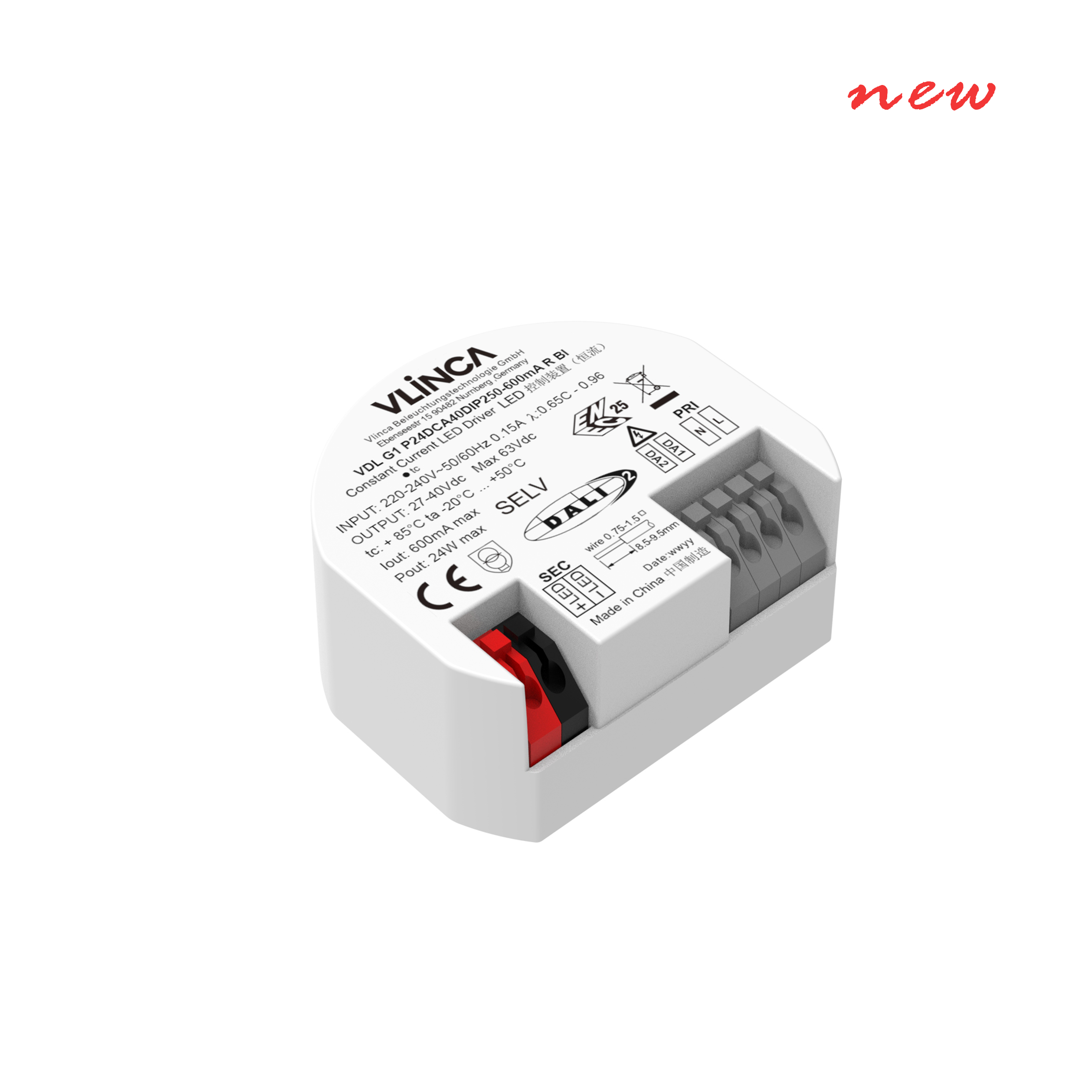

Built-in DALI LED Driver PRO

Description

• Intellidex (DAL12 part ext. 251, 252 and 253)

• Dimmable constant / Built-in LED driver

• For ambient temperatures up to 50 “C

• Dimming range 1 to 100 % (min.3.5mA)

• Output current adjustable between 400-600mA via DIP

• Max. output power 24 W

• Up to 87% efficiency

• Power input on stand-by< 0.5 W

• Nominal lifetime up to 50.000 h

• 5-year guarantee

Features and Benefits

• Adjustable output current(DlP), SwitchDlM function

• Fulflls DALl-2 parts:105 (DALl frmware update), 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance)

• Protective features (overtemperature, short-circuit, overload, no load) Surge protection voltage 1 KV(L-N)

• Forcable cross-sections up to 1.5mm

• The lamp controlgear relies upon the luminaire enclosure for protection against accidental contact with live parts

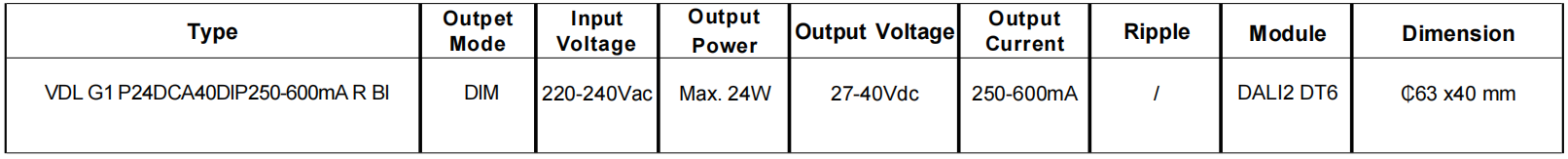

Technical parameter

• Input Voltage: 220-240Vac

• Output Voltage: 27-40V

• Intellidex(DALI-2 part ext. 251,252 and 253)

• Output current: 250/300/350/400/450/500/550/600mA

• Output power: 24W

• Effciency: up to 87%

• Dimension: Ø63x26mm
