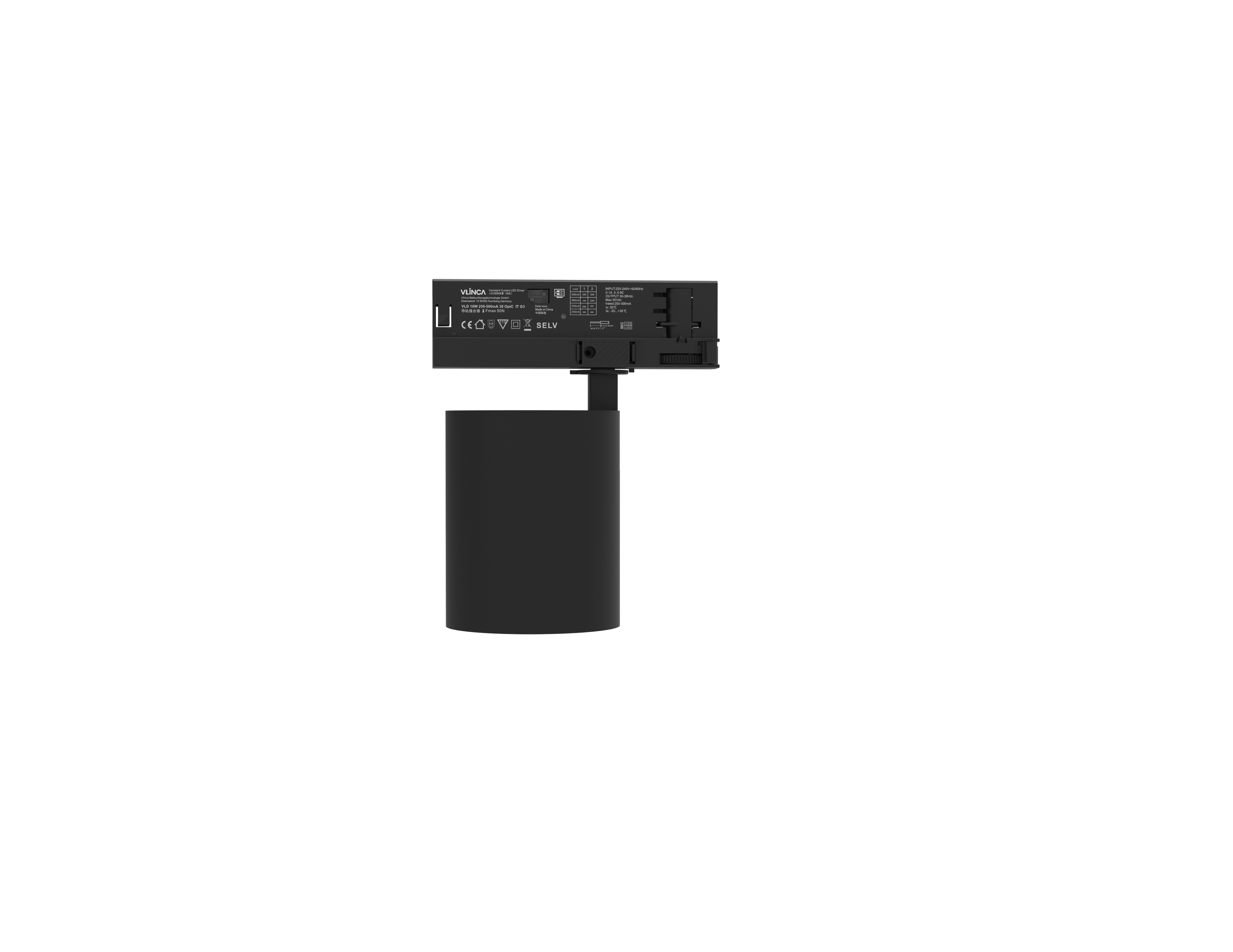

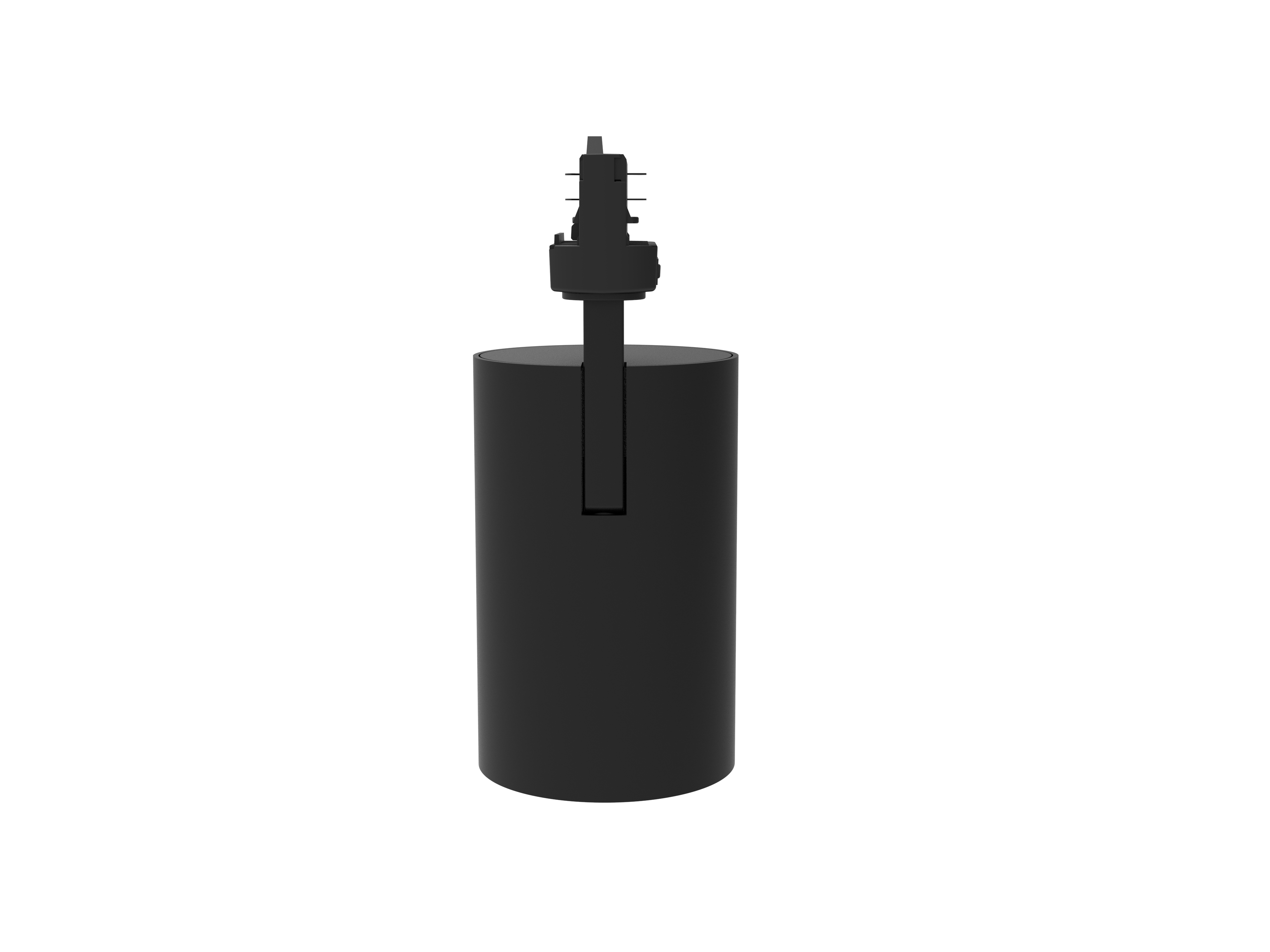

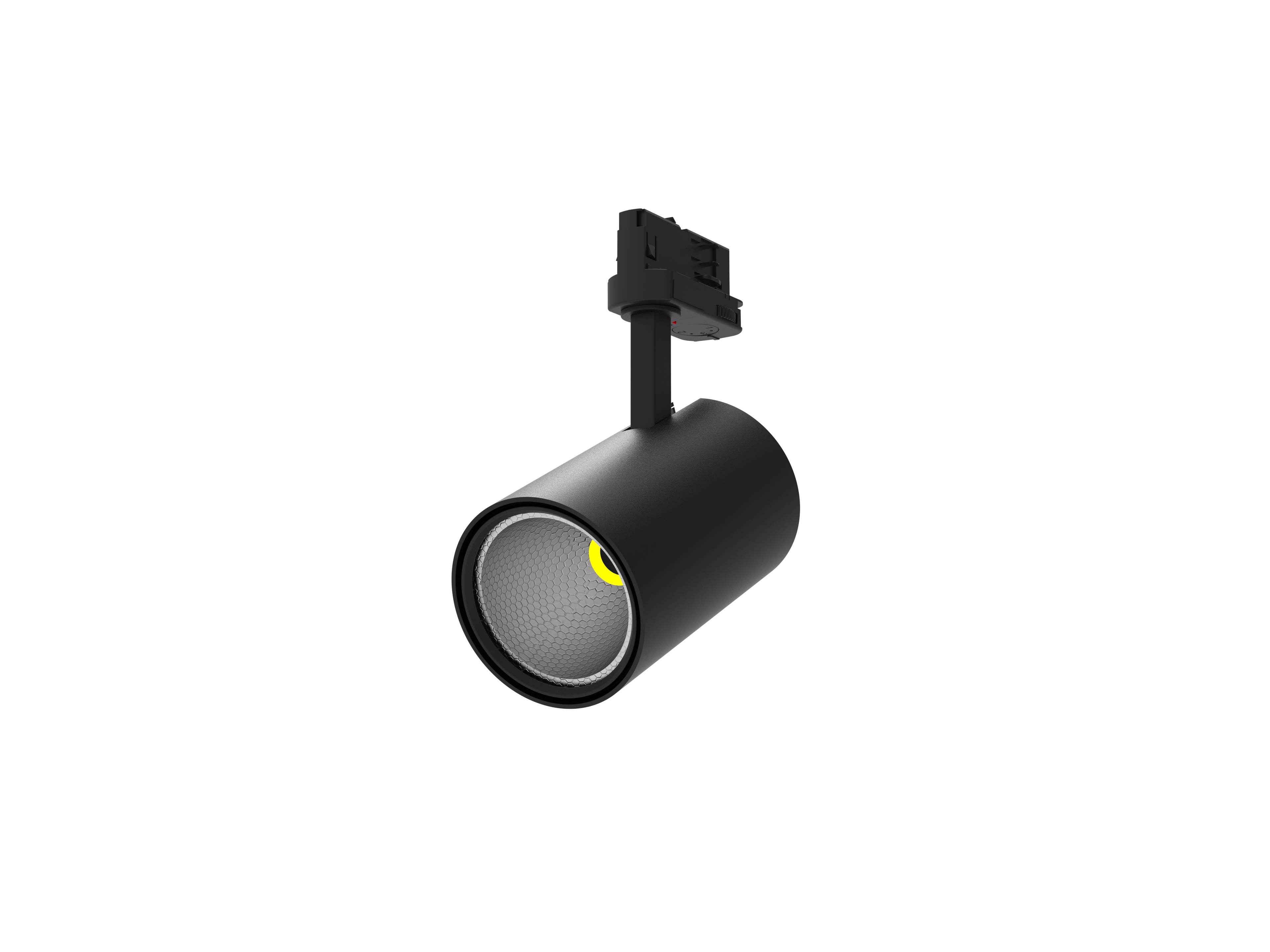

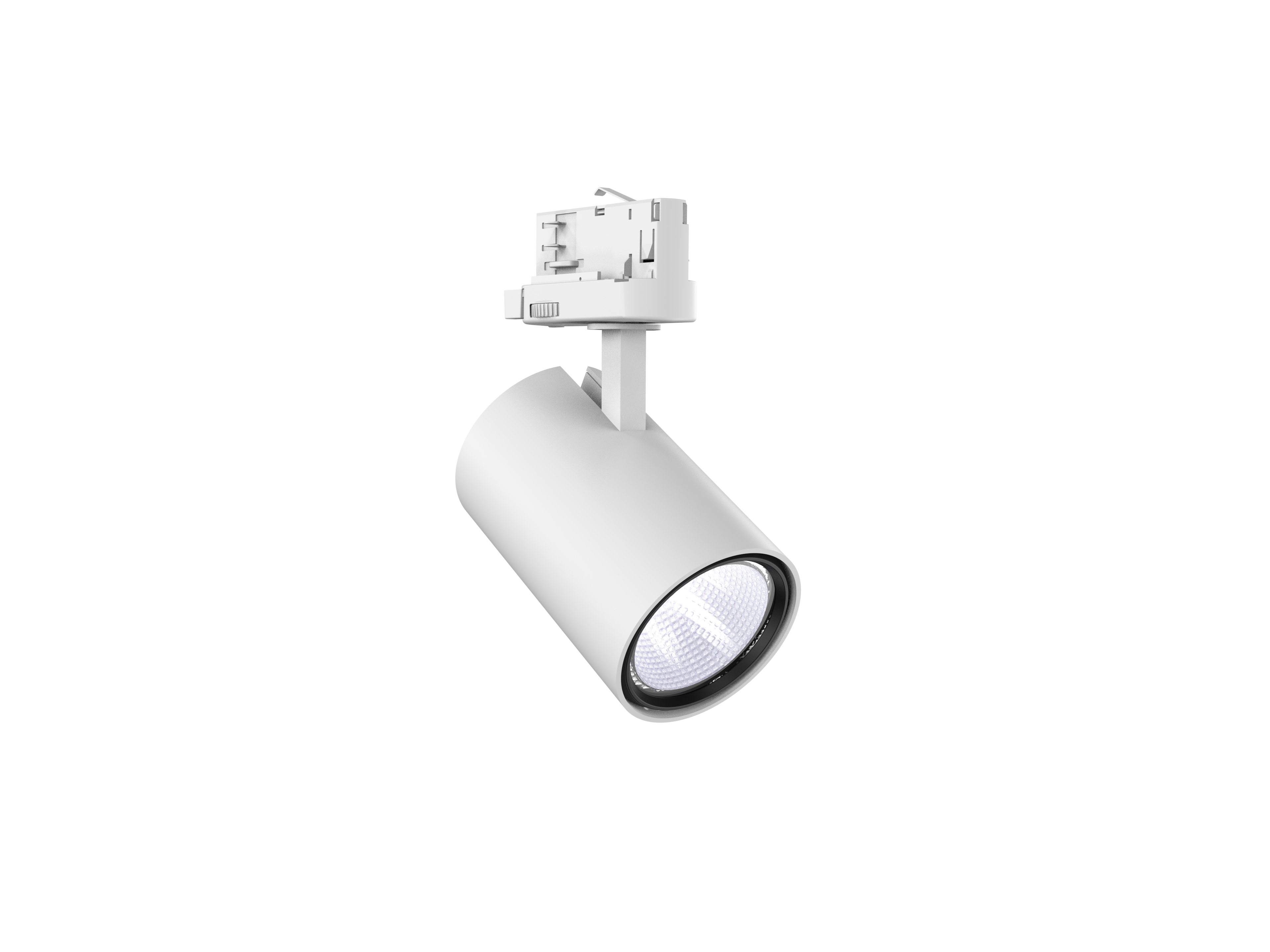

MEGAERA HE+
Description
• Die-casting housing (Alumium-ADC12)
• High Efficiency Reflector (alanod, efficiency: 98%±2%)
• High Efficiency driver(Vlinca brand, efficiency: up to 92%)--Optional Tridonic driver
• The whole luminaire efficiency can be up to 157lm
• For luminaires of protection class II
Features and Benefits
• Nominal Life-time up to 50,000 hours
• Housing colour--typ.White/Black
• Type of protection IP20
• MAX Wattage 23W 600mA
Technical parameter
• CCT: 3000K/4000K
• Effcacy up to 160 lm/w (3000K)
• High colour rendering index CRI>90

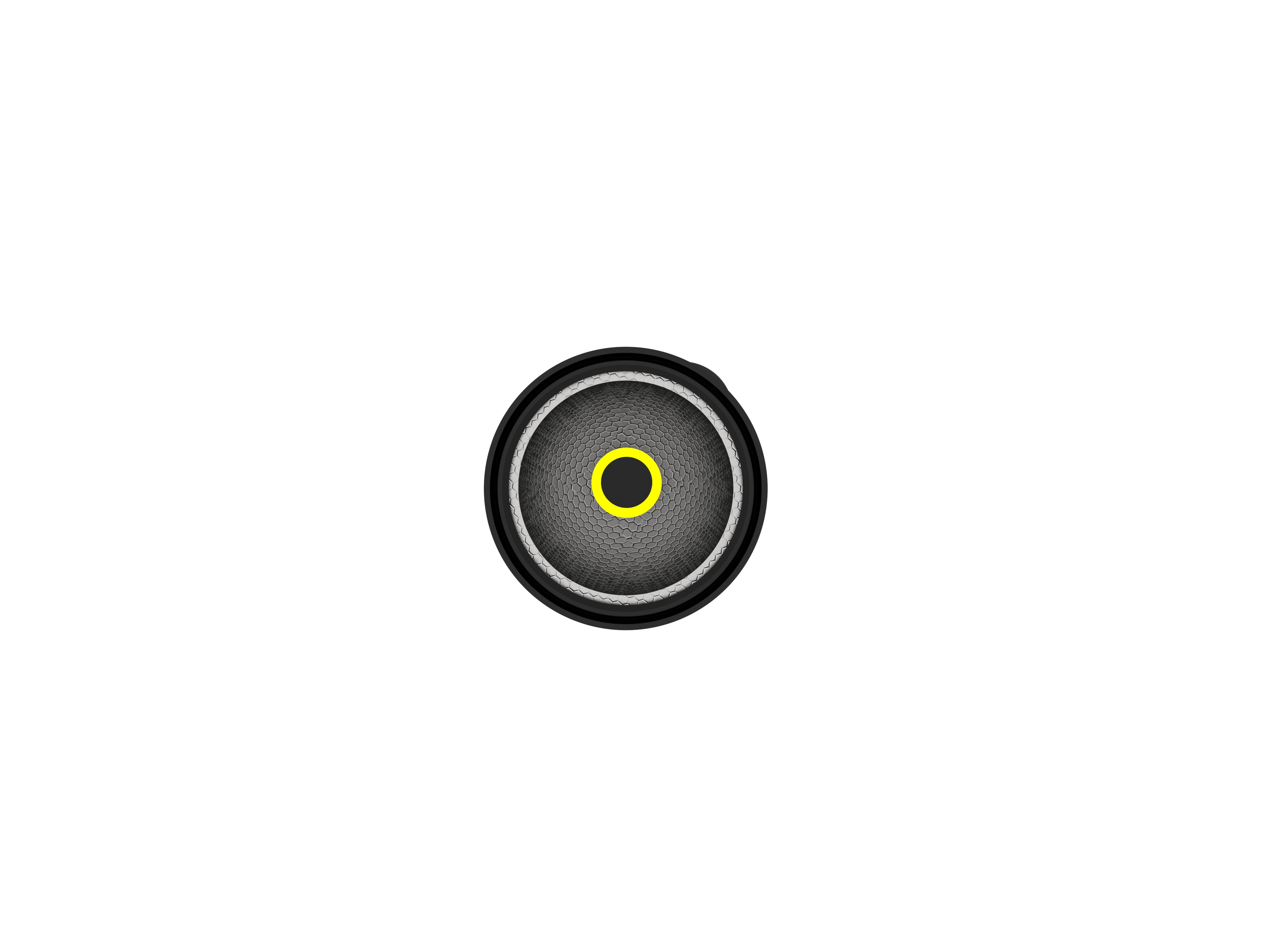

• Optical: reiector/Lens
• Beam angle: 18/28/38/50 degree
• Compact size: Φ72mm;Φ85mm
• High Effciency driver (Vlinca) up to 92%
• 4L in-track driver and built-in round driver are available
