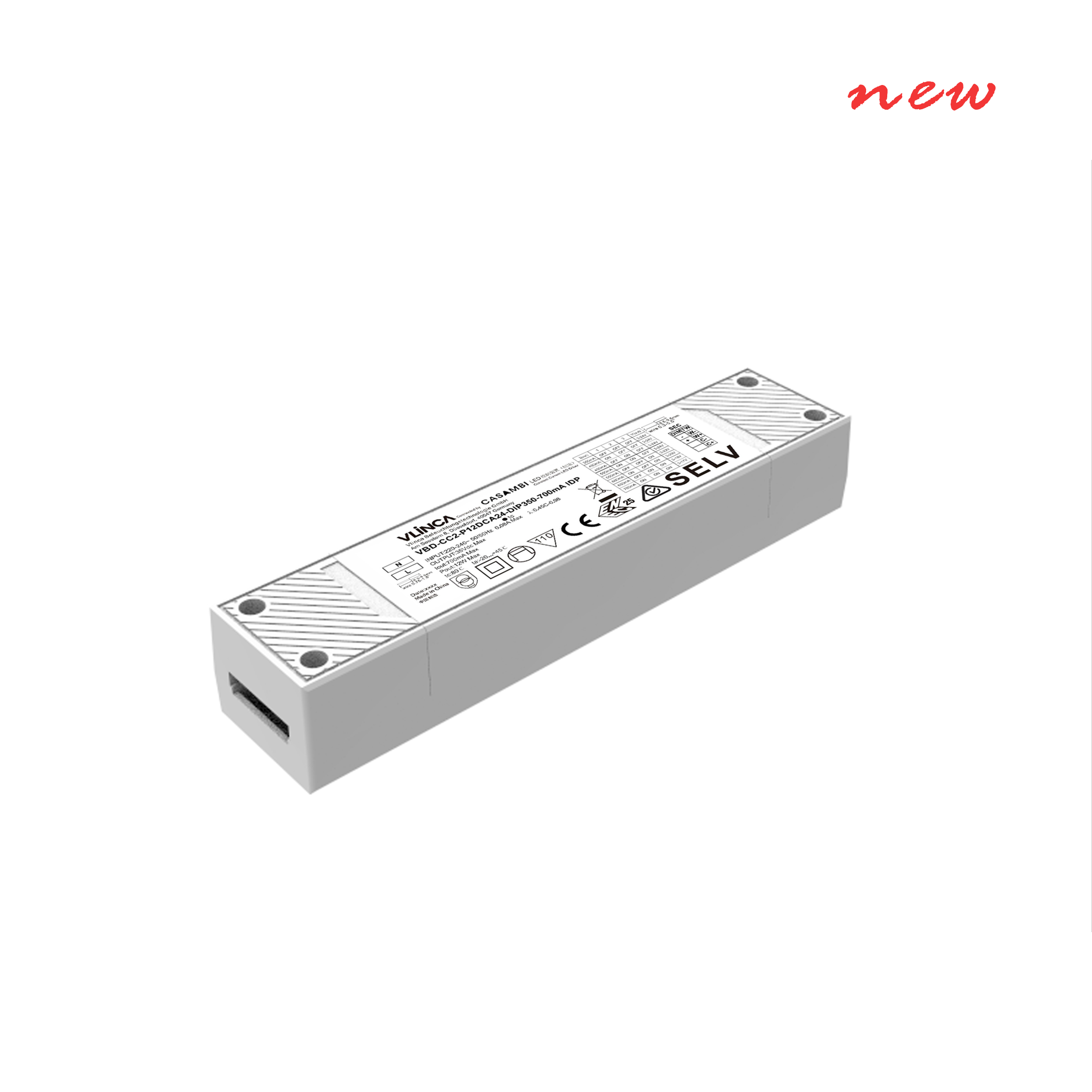

VBD-CC2-P12DCA42-DIP
Description

VBD-CC2-P12DCA42-DIP:Can be integrated in Casambi systems (Casambi Ready);Dimmable and tunable white independent constant current LED driver;Selectable fixed output current between 100mA and 450mA,350mA and 700Ma via DlP switch;For luminaires of protection class ll;Forms automatically a wireless communication network with up to 250 nodes;Max. output power 12 W;Terminal blocks: 45° push terminals.

Features and Benefits

• Compact mini dimension, wide current range

• Up to 88% efficiency

• Typ.power consumption on stand-by < 0.35 W

• Dimming range 1 to 100 %

• Life-time up to 50,000 hours

• 5-year guarantee

• Casing: polycarbonat, white

• Type of protection lP20

• Overtemperature protection

• Overload protection

• Short-circuit protection

• No-load protection

• Burst protection voltage 1 kV

• Surge protection voltage 1 kV(L to N)

• For spot light and downlight in retail,residential and hospitality appliation


Technical parameter

Connected by Casambi DIM/TW

• Input: 220-240V

• Output power: 12W

• Dimension: 135*29.5*21mm

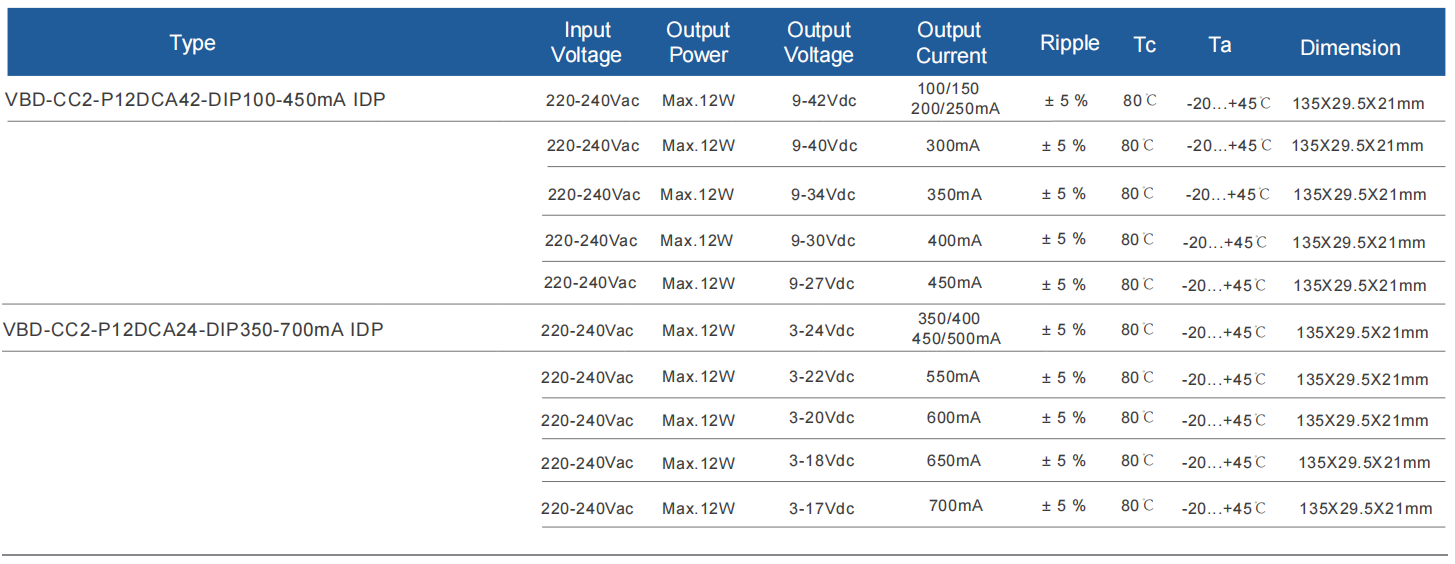

• Output current&Voltage:

    100/150/200/250mA 9-42Vdc

                          300mA 9-40Vdc

                          350mA 9-40Vdc

                          400mA 9-30Vdc

                          450mA 9-27Vdc

    350/400/450/500mA 3-24Vdc

                          550mA 3-22Vdc

                          600mA 3-20Vdc

                          650mA 3-18Vdc

                          700mA 3-17Vdc
