Product description

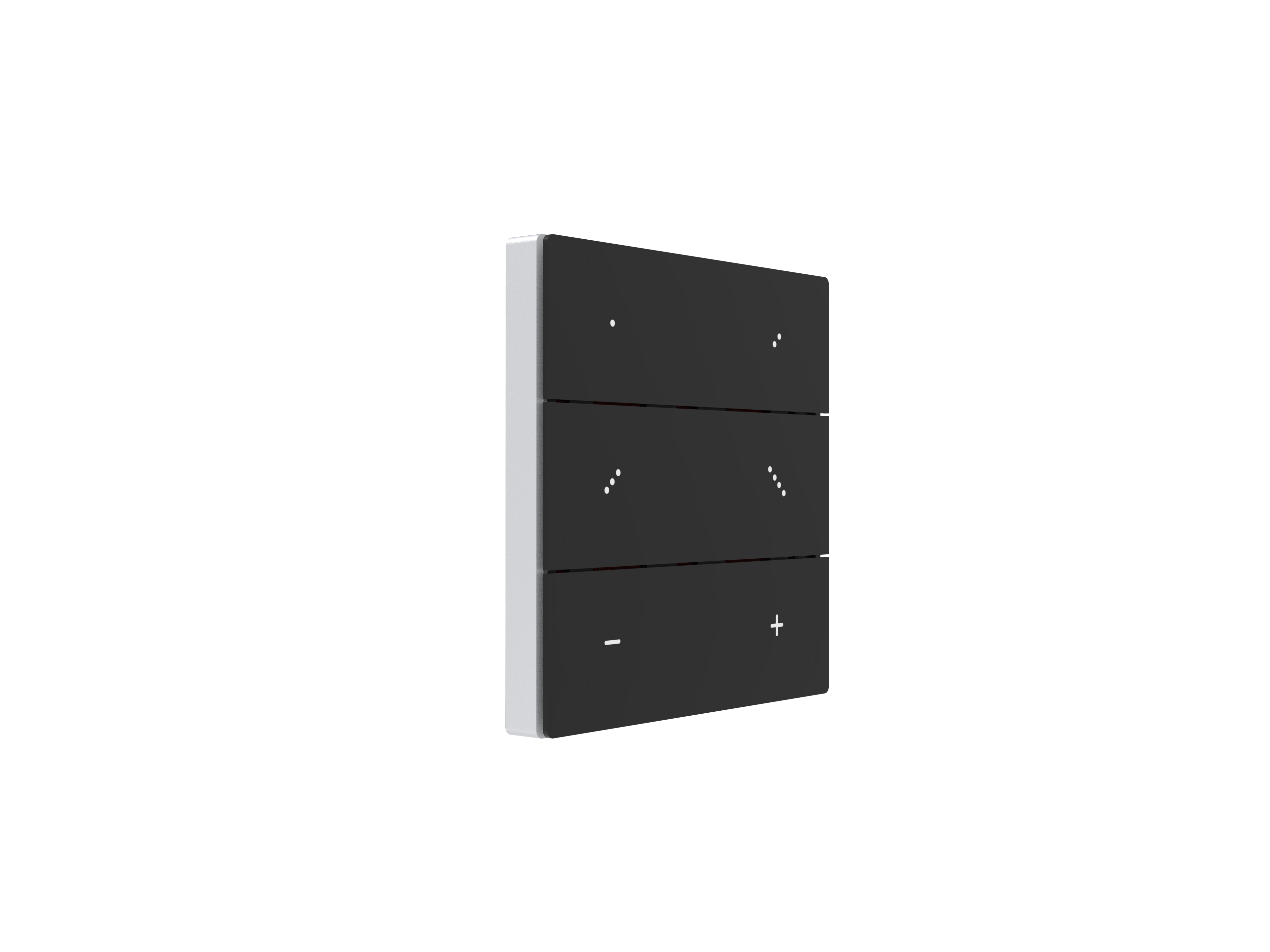

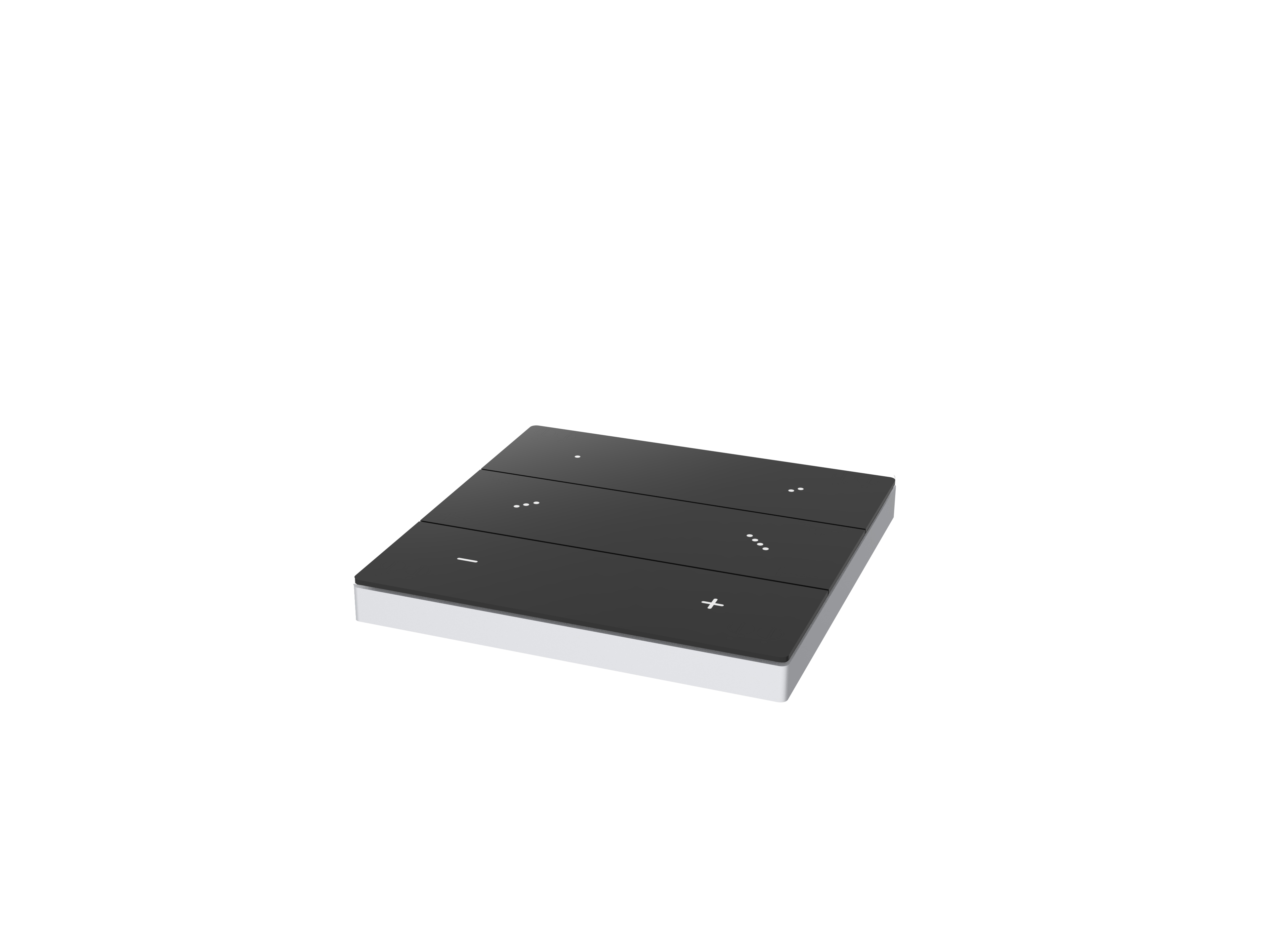

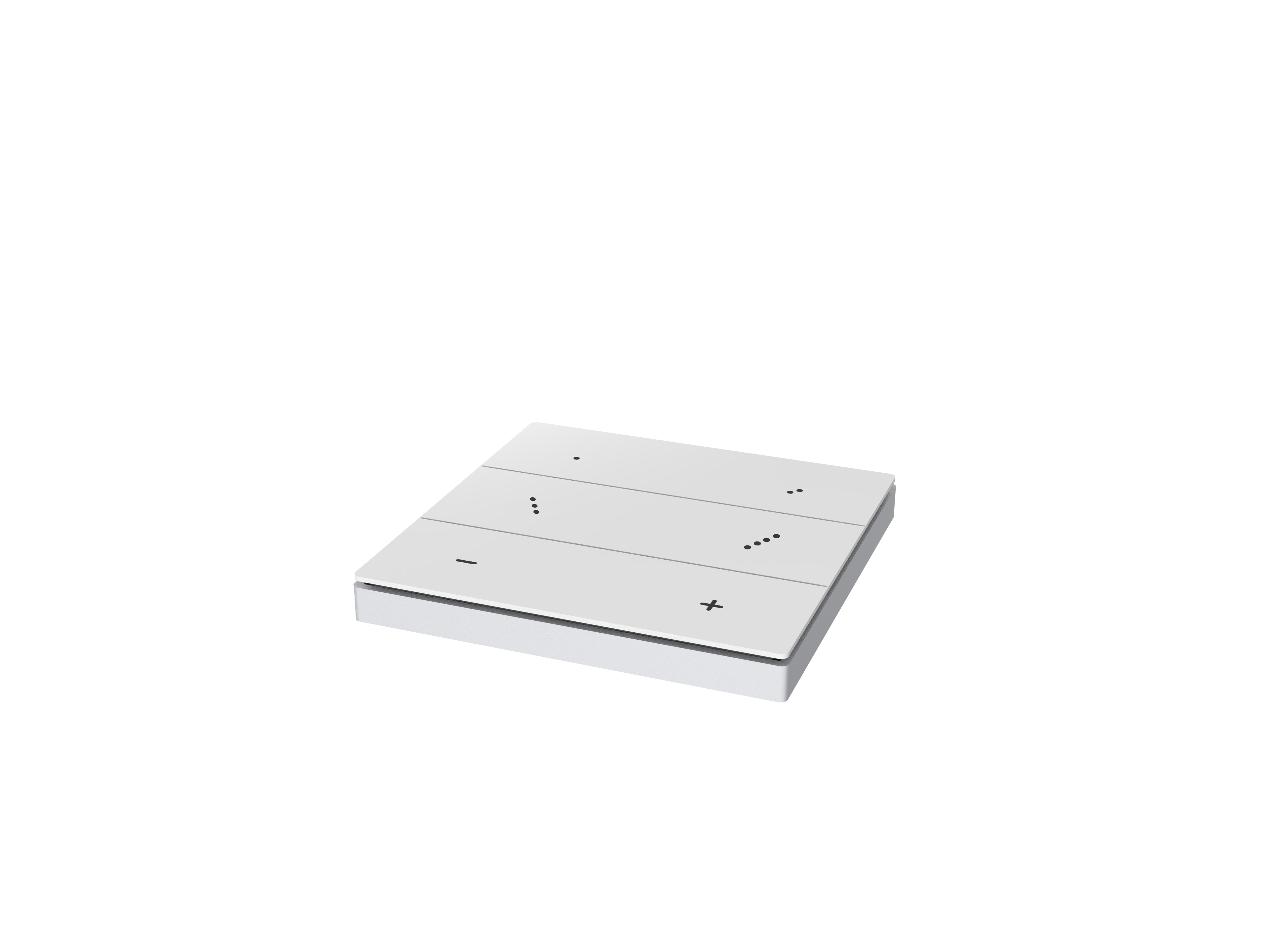

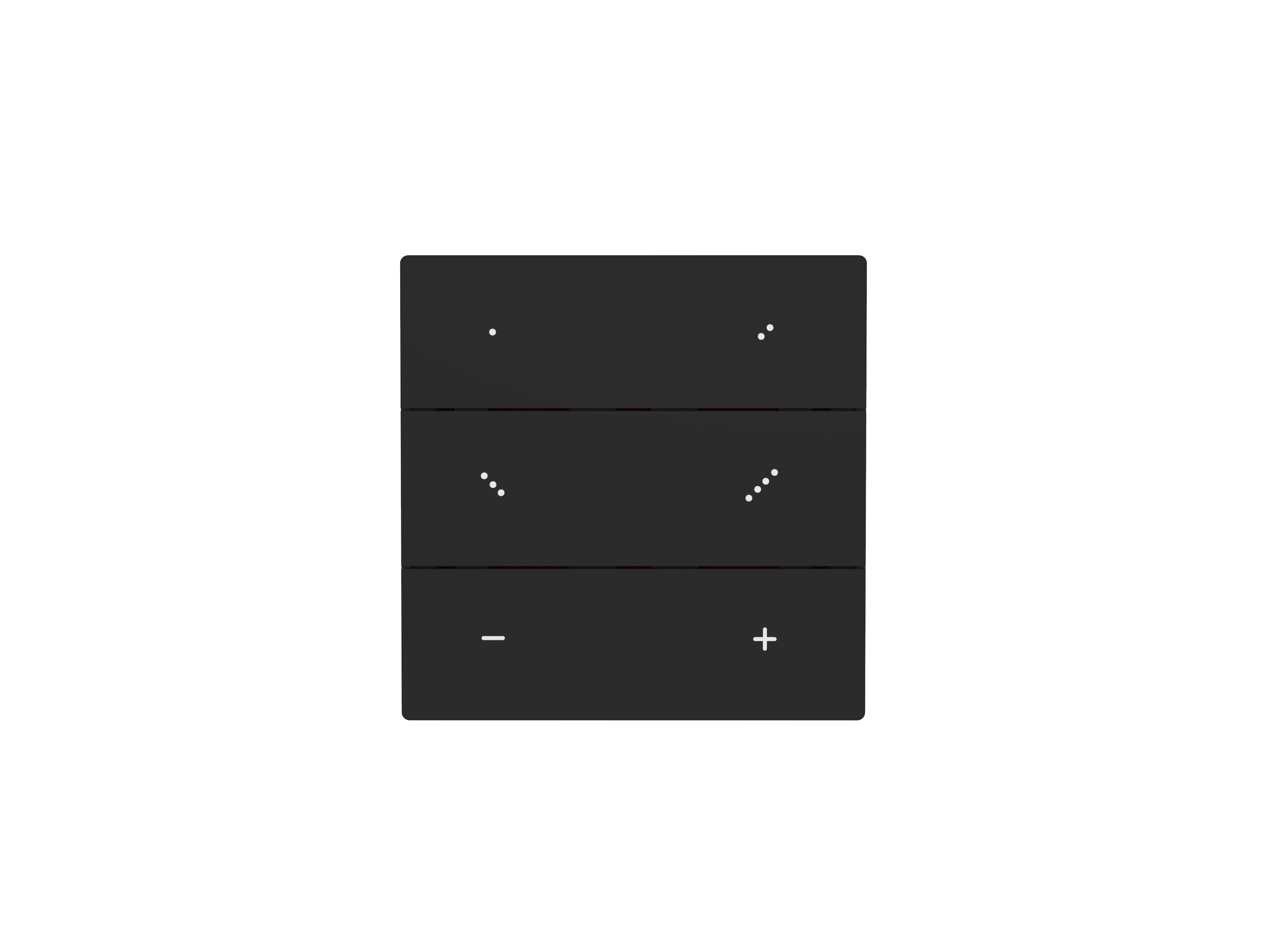

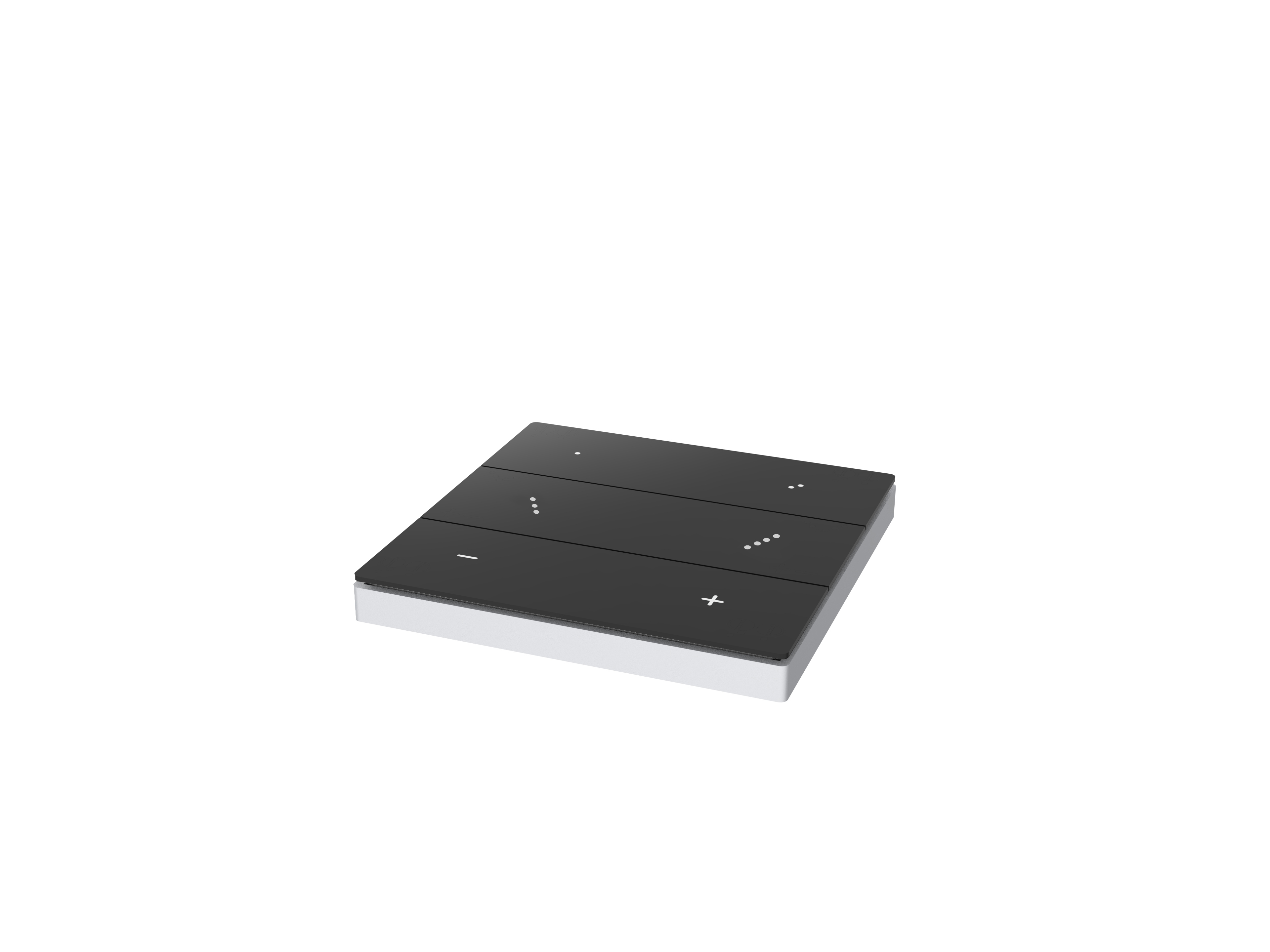

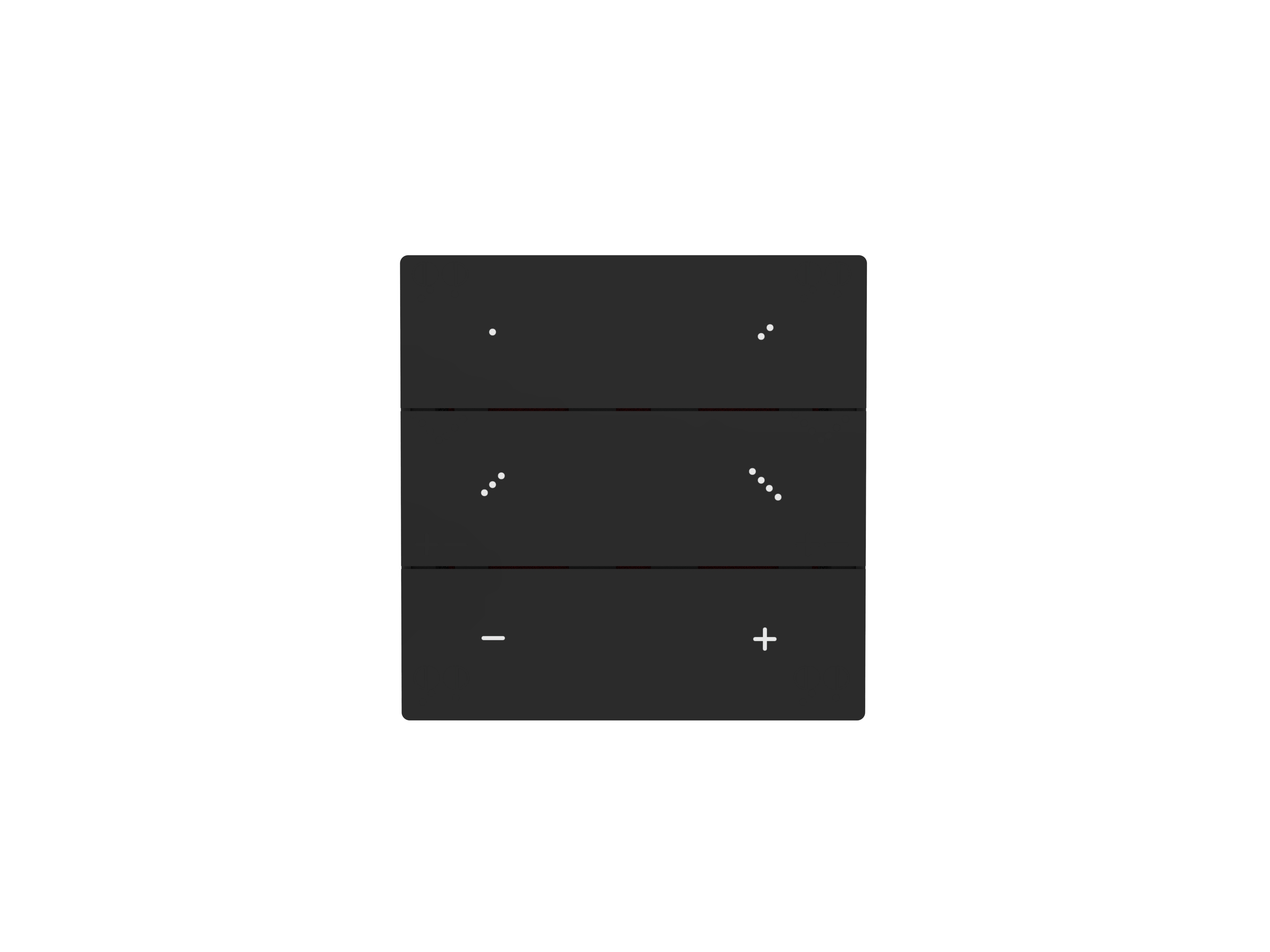

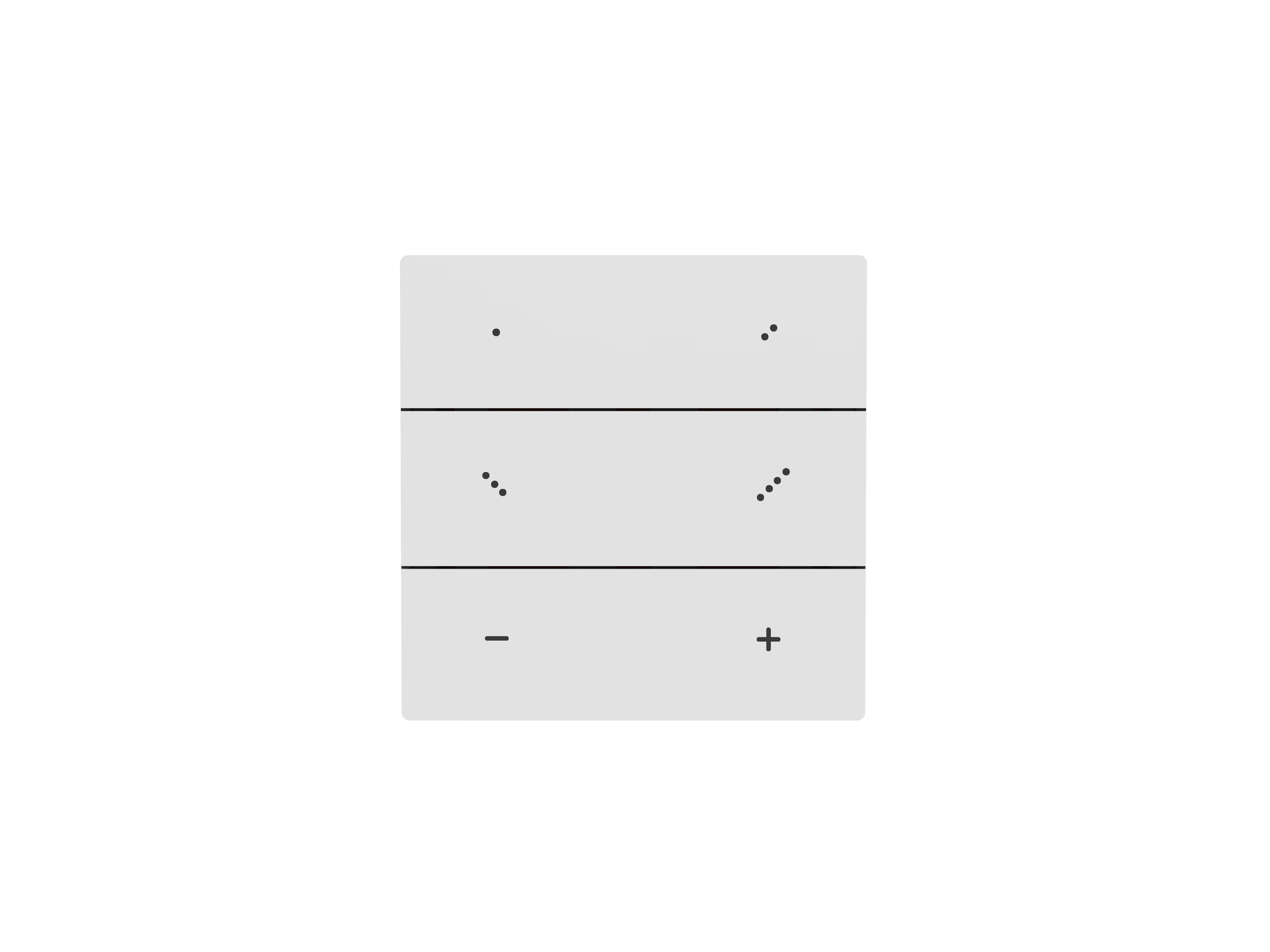

VBA-RCS6 is a convenient controller(Built in battery) for CASAMBI wireless, long-range network. The controller includes 6 buttons that can be configured for 4 presets and 2 dimmers.
_ 4 preset buttons can control a scene or an animation or simply one luminaire, one luminaire group or all lamps together if so desired.
_ “+” and “-” implement the assigned action on/off or dim up/down, once tap “+” or “-” for the assigned action on or off, long press for the assigned action continuous dimming up or down.
Features
• Works with CASAMBI.
• Can control totally 4 assigned action(scene,animation,one luminaire or group).
• Dimming key have two functions by different pressing operation:
• Long press for smooth dimming.
• Tap for action on / off.
• Built-in battery, can be placed anywhere you want without worry about charging.
Technical data
Power supply mode |
• Lithium Battery powered |
Battery |
• Type: CR2430 Lithium Coin Cell |
Battery life
|
• 2 - 5 years, depending on usage |
Operating conditions |
• Operating temperature: -20°C... +40°C • Storage temperature: -25°C... +50°C • Max relative humidity: 0...65%, non - cond. |
Radio Transceiver |
• Operating frequencies: 2.402...2.480 GHZ • Output power: -40dBm to 8dBm • Wireless range, in open air ≥ 50 m |
Physical parameter | • Dimensions: 86*86*15.2 mm • Weight: 100g • Degree of protection: IP20 (indoor use only) • Color: Black, White |
Certifications |
• CE |
