Product description

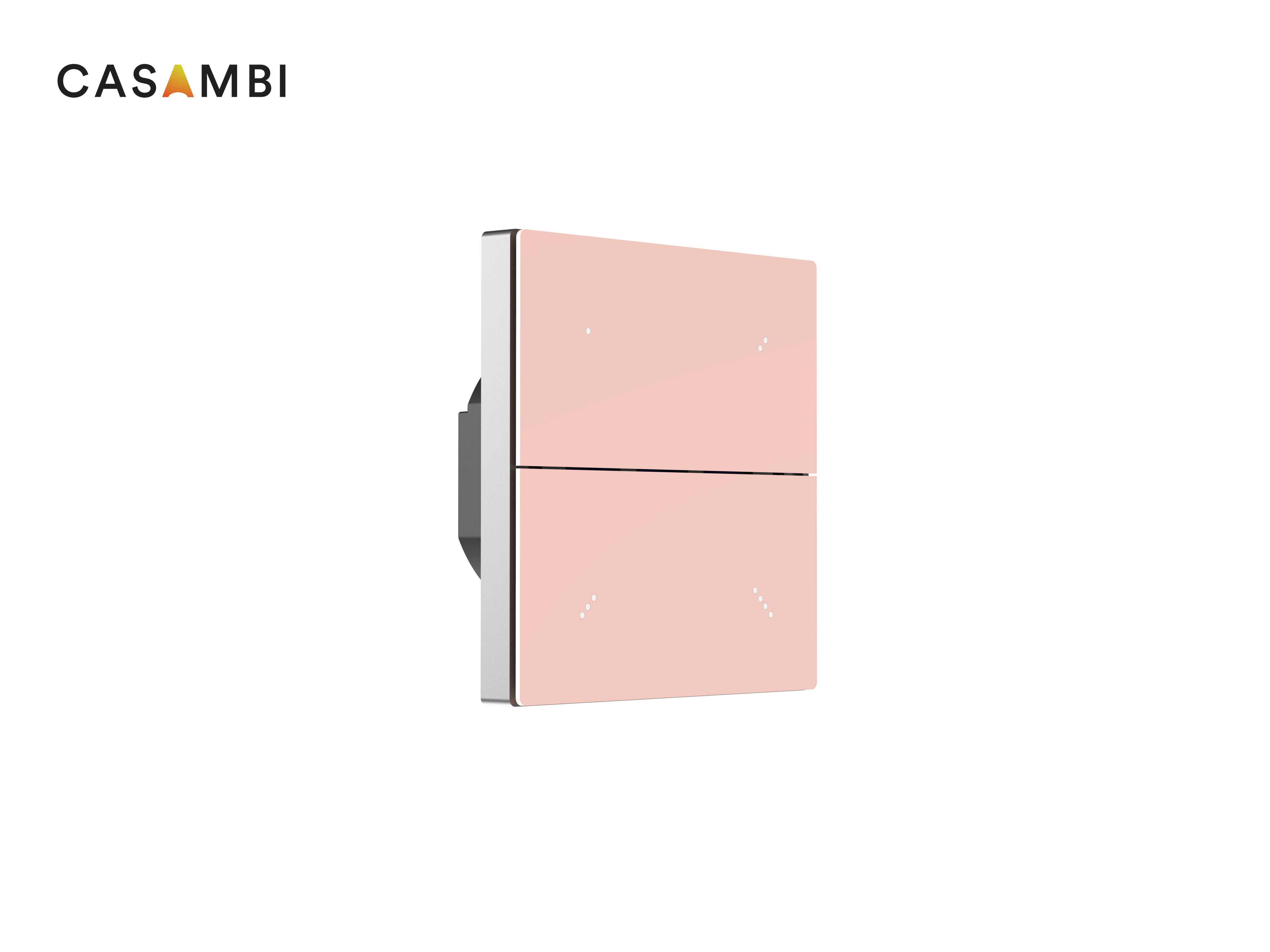

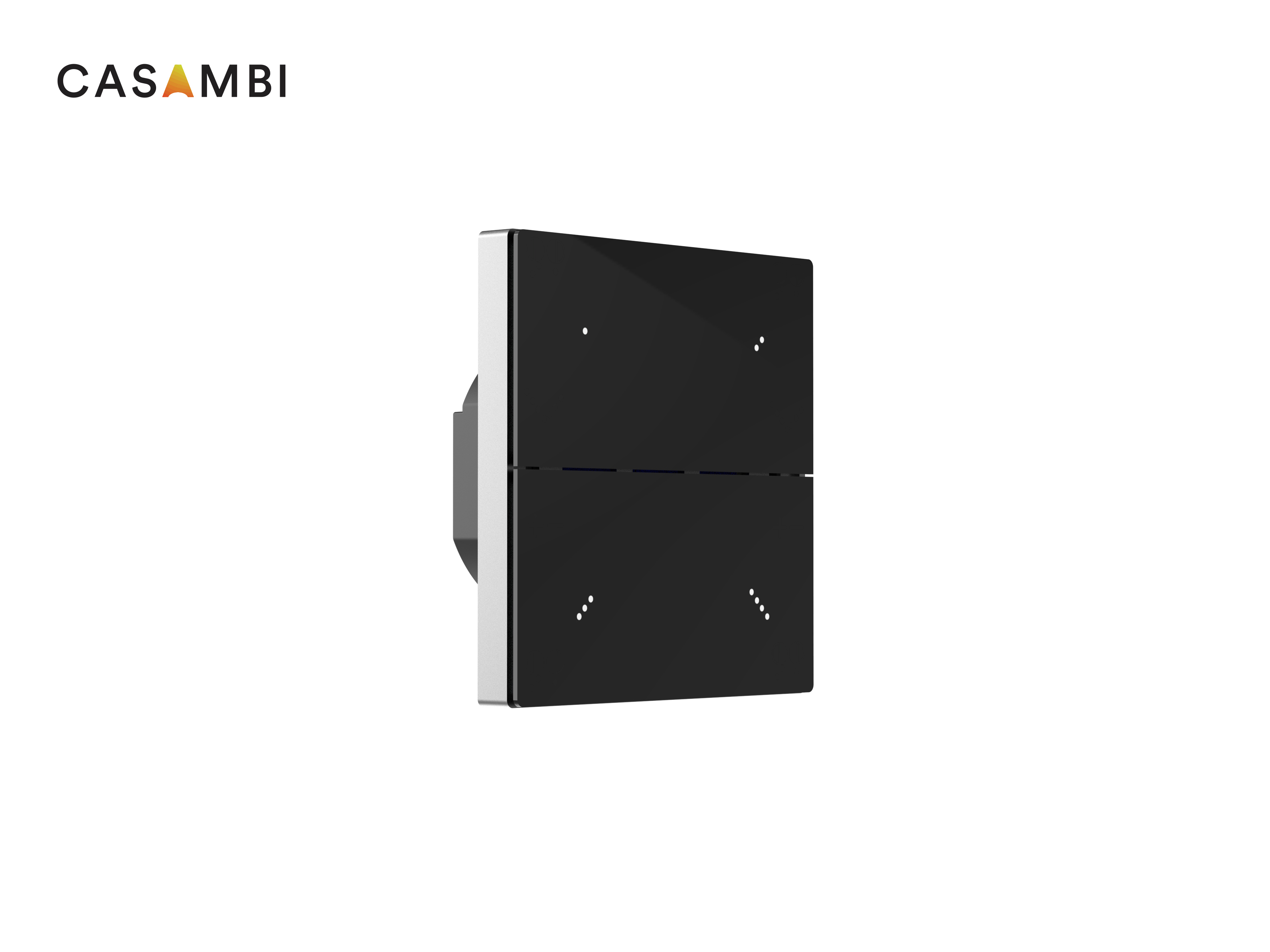

VBA-SSR4 is a panel controller for CASAMBI wireless, long-range network.The panel includes 4 buttons that can be configured for "4 presets", "2 presets + 2 dimmers", or "2 presets + 2 relays" by three different fixture profiles.
It integrates a proximity sensor(Built-in microwave 5.8G module). Device will wake up when there's a hand montion detected within 30 cm, and human motion detected within 80 cm.
Features
• Works with CASAMBI.
• Button background color can be configured.
• Can be configured for " 4 presets " control.
• Can be configured for " 2 presets + 2 relays " control.
• Can be configured for " 2 presets + 2 dimmers " control.
• Built-in a proximity sensor, wake up when there's a hand or human motion detected.
Technical data
Rated supply voltage | • 220-240Vac |
Pin Voltage | • 3.3Vdc |
Relay Input Voltage： | • 220-240Vac |
Peak power | • L1: LED driver / Incandescent lamp 300W |
Ambient temperature ta | • 0°C... +50°C |
Max. casing temperature tc | • 70°C |
Storage temperature ts | • -20°C... +60°C |
Static electricity | • contact+/-4KV,air+/-8KV |
Surge | • differential mode+/-500V, • common mode+/-1KV |
Network mode | • Bluetooth |
Operating frequencies: | • 2.402... 2.480Ghz |
Maximum output power | • + 7dBm |

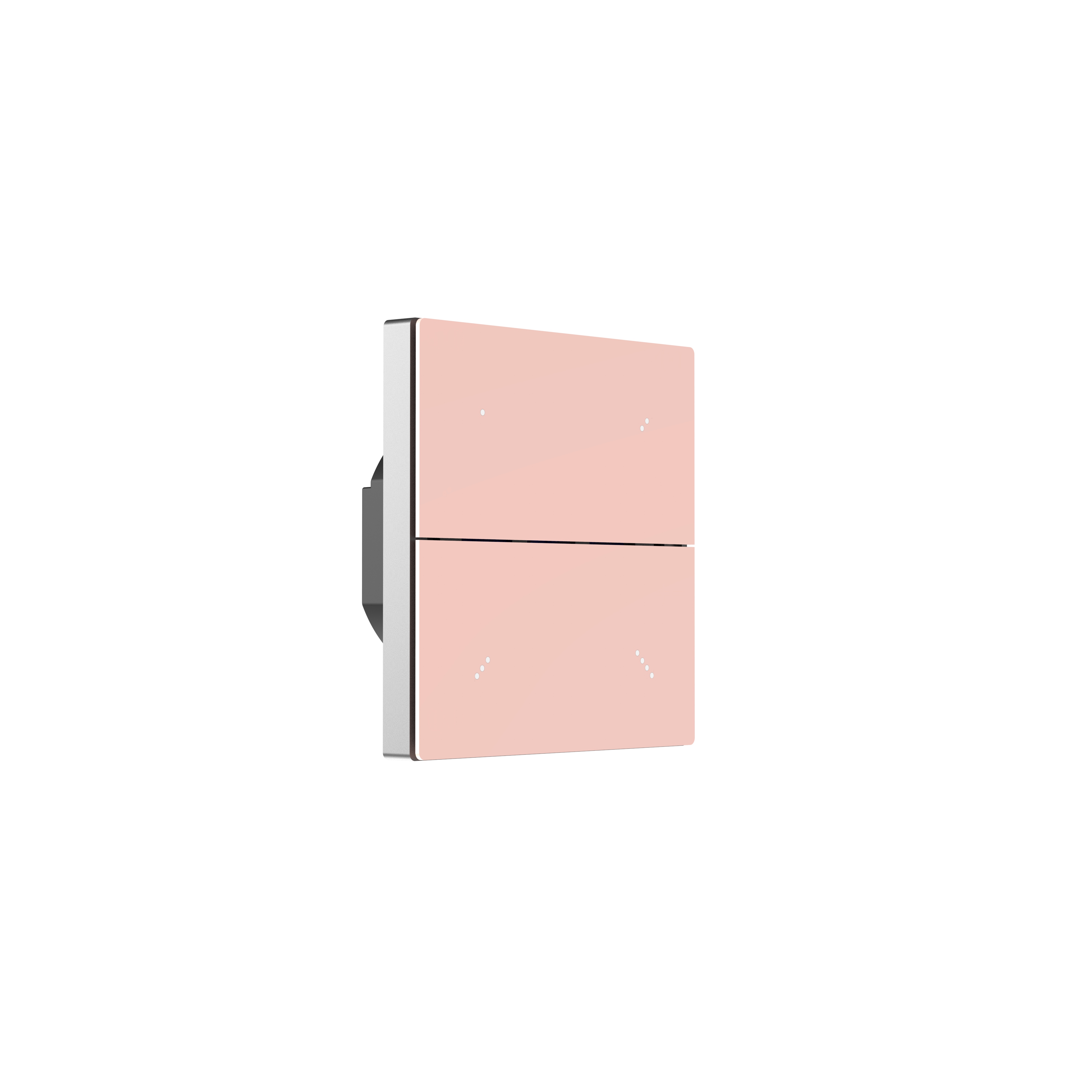

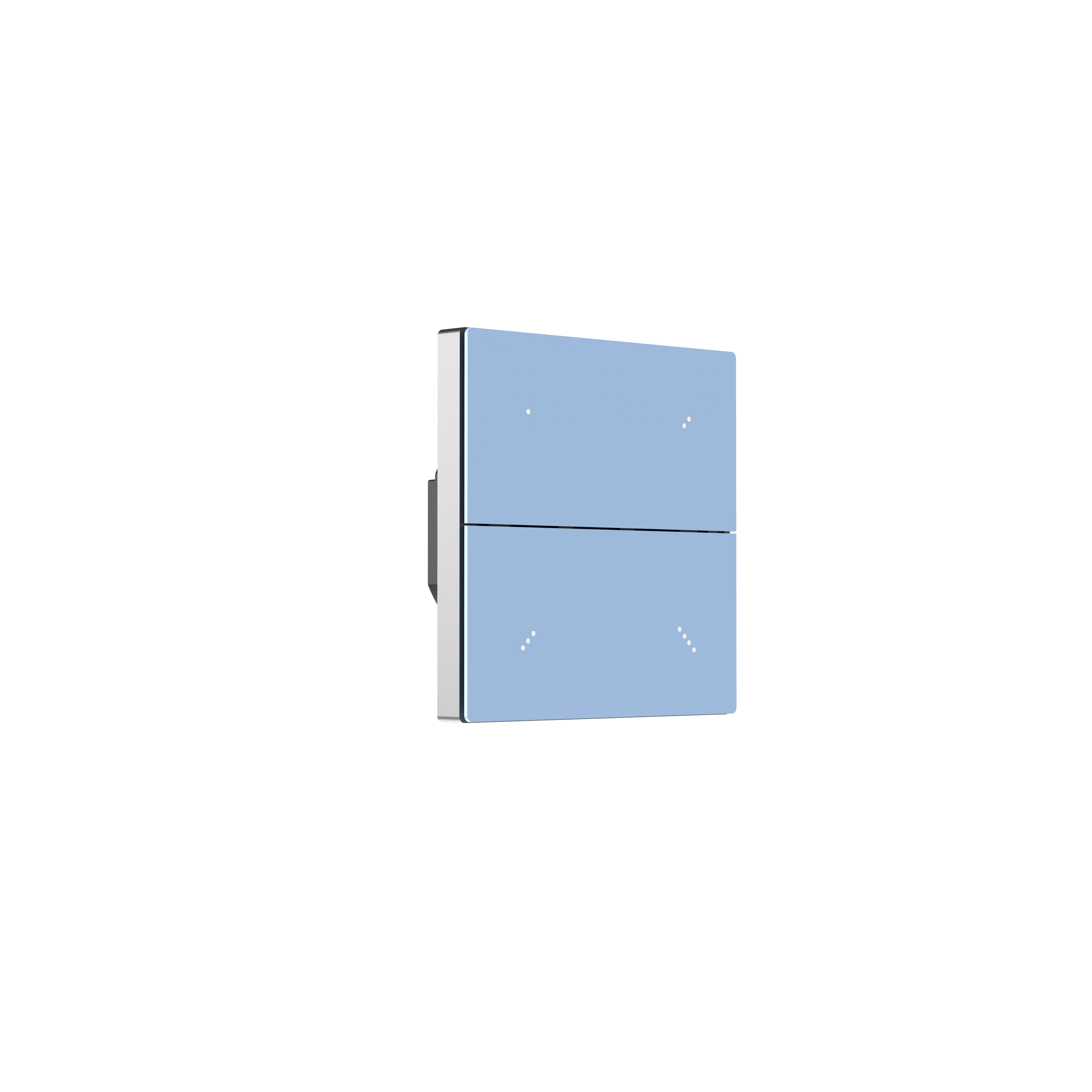

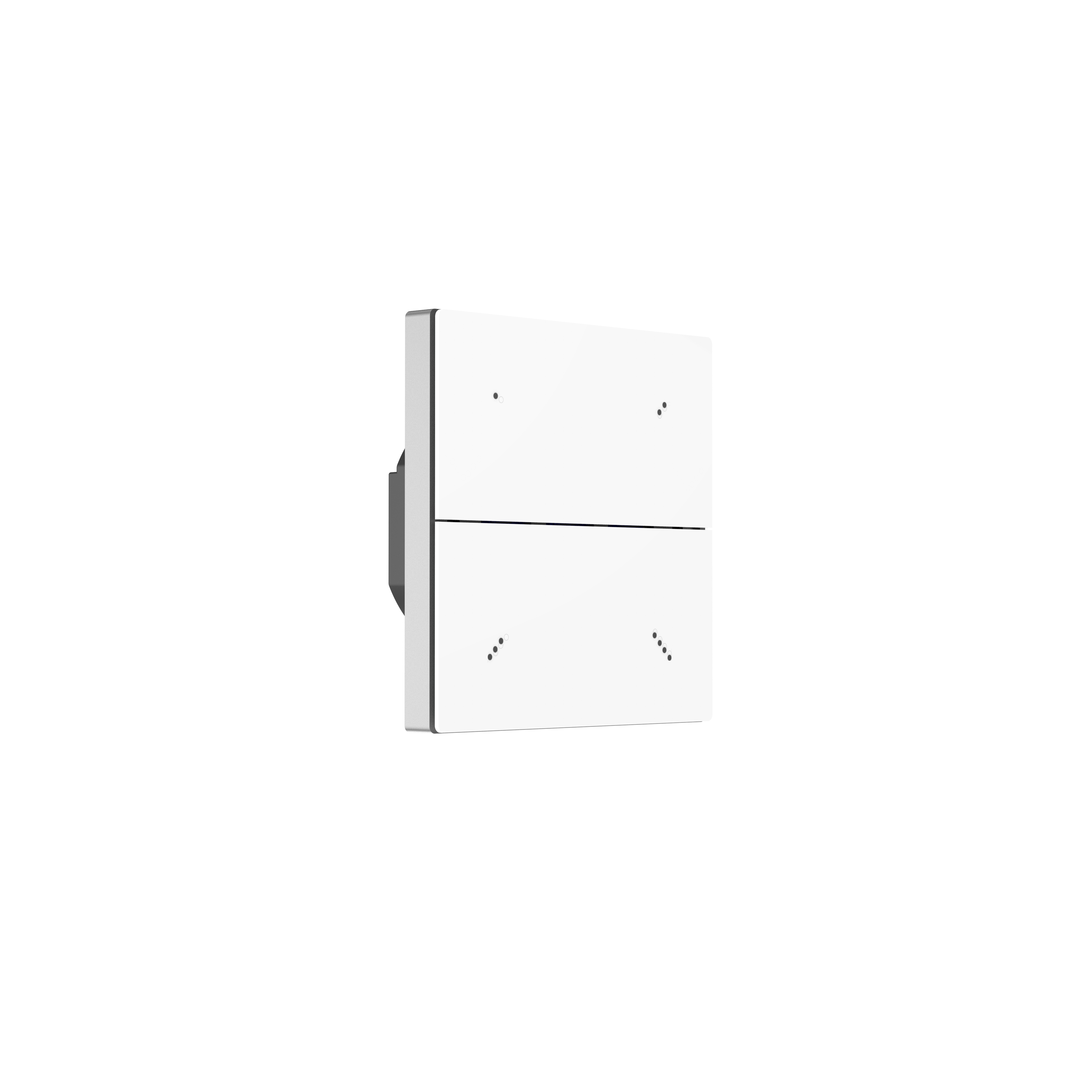

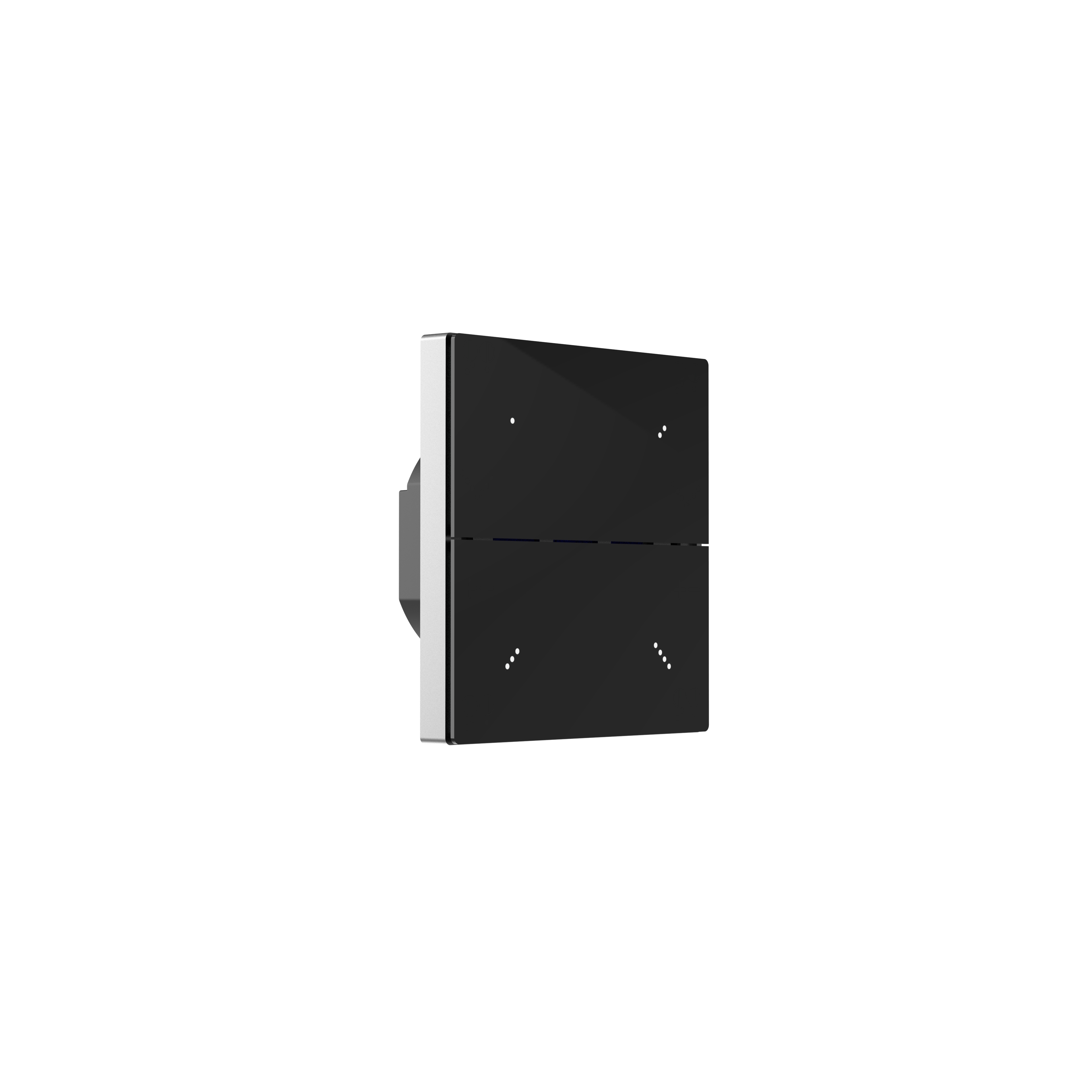

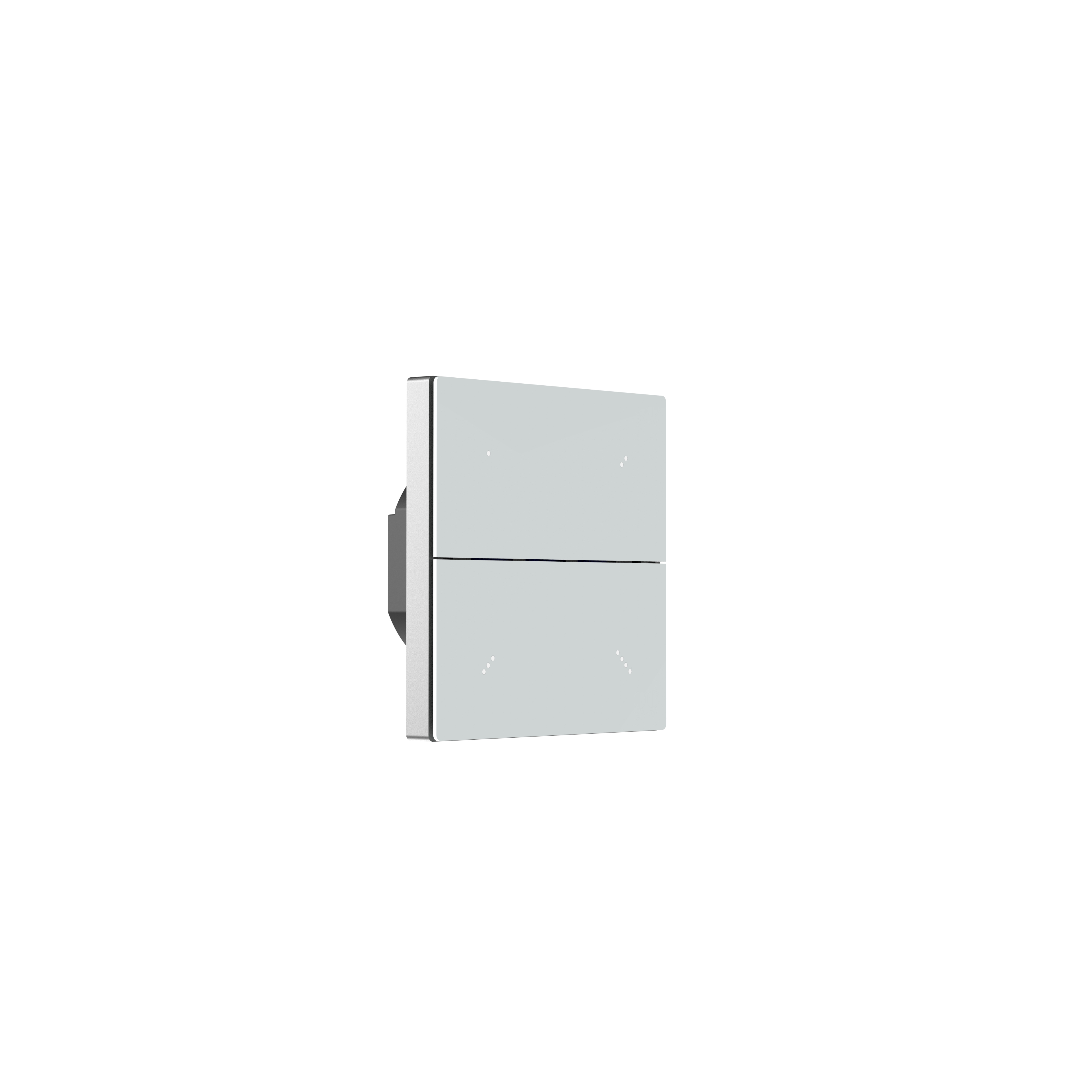

Mechanical data | • Weight: 157 g • Panel Dimensions: 86 x 86 x 33.5mm • Power supply Dimensions: 78x78x25mm • Color: White Black Light grey Baby blue Light pink |
Lifetime | • up to 50000h |
Wire range, solid | • 0,75-2,5mm²，13-20AWG |
Wire strip length | • 6-8mm |
Certifications | • CE • RCM |
