Product description

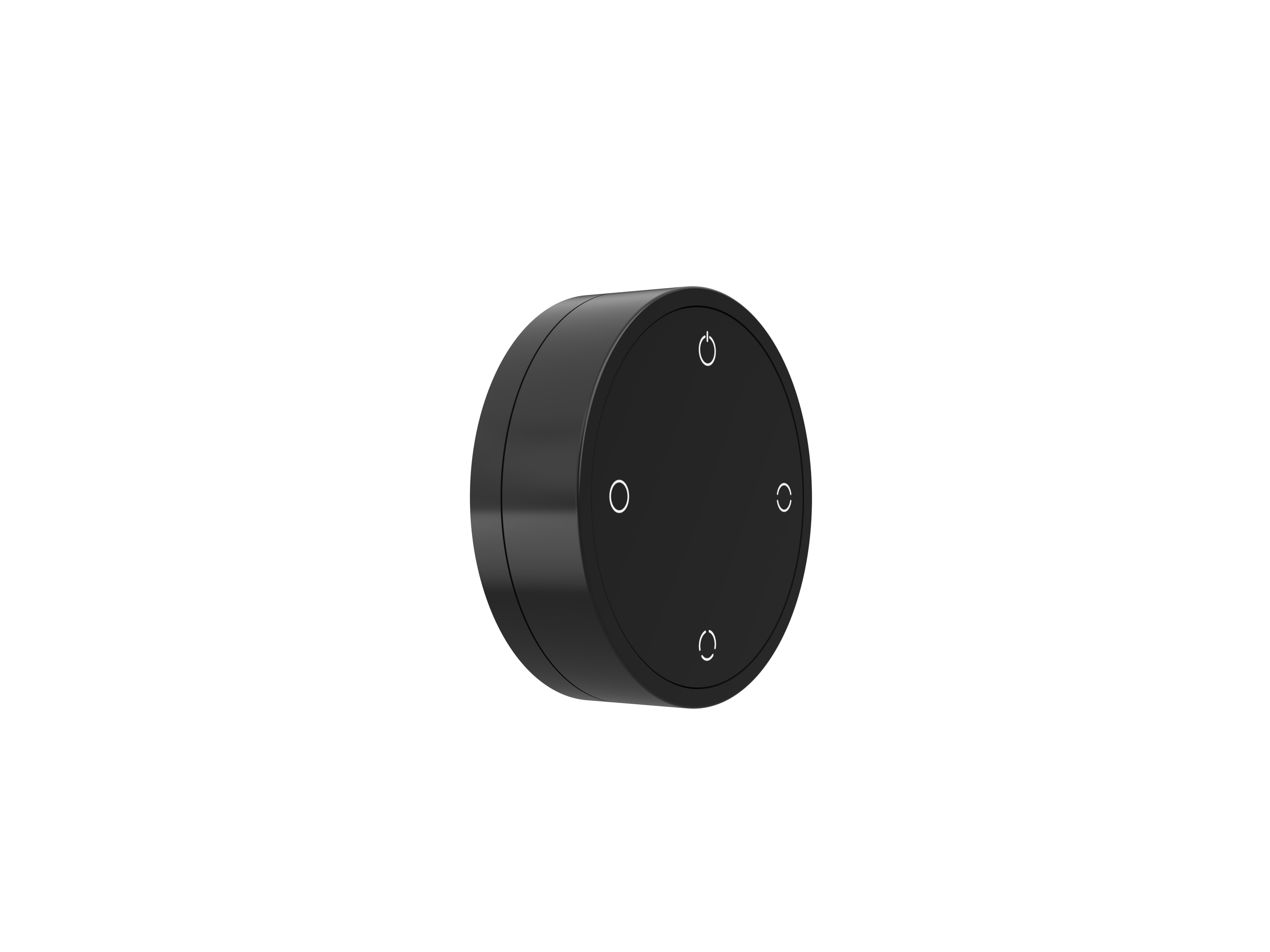

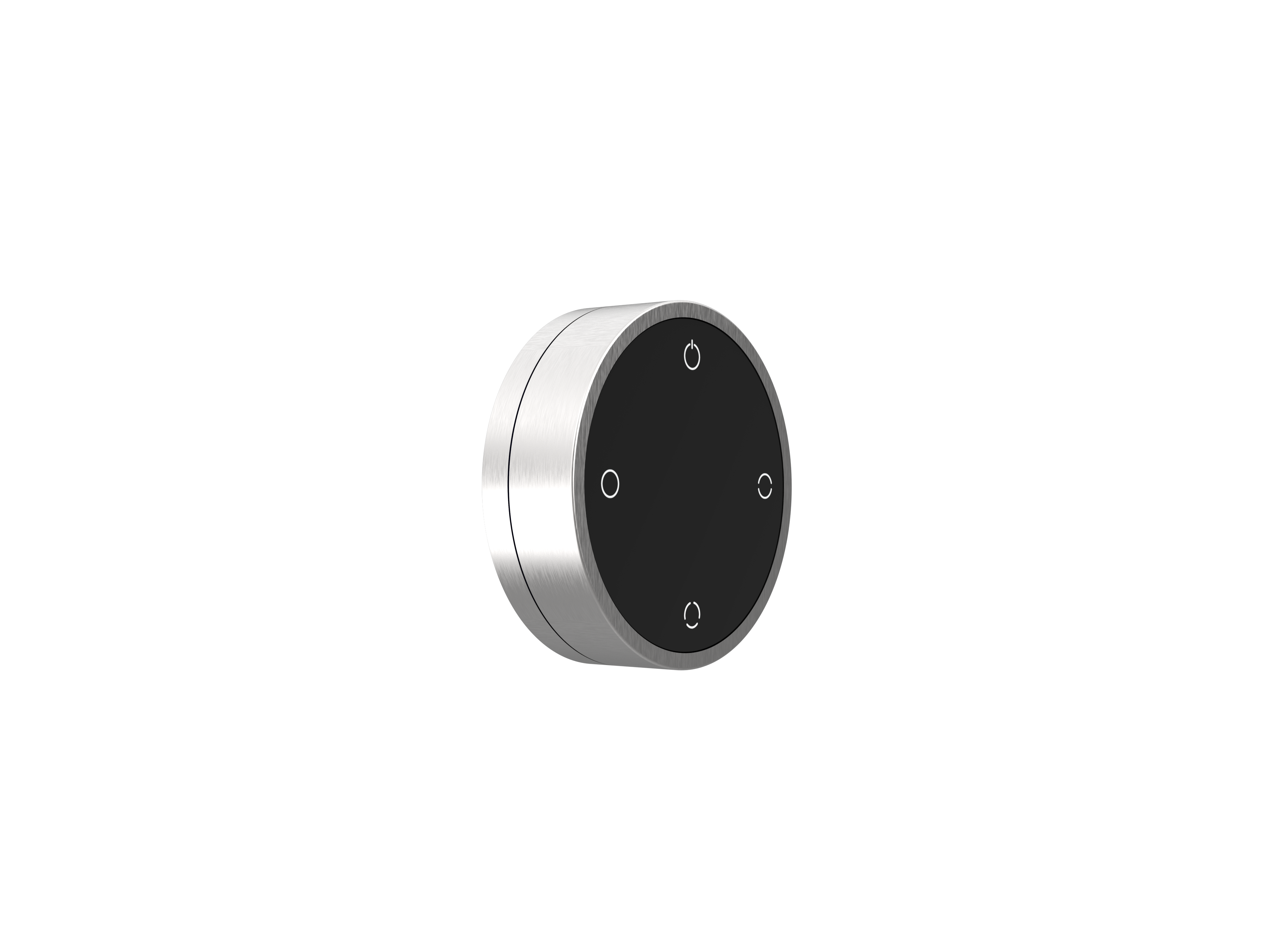

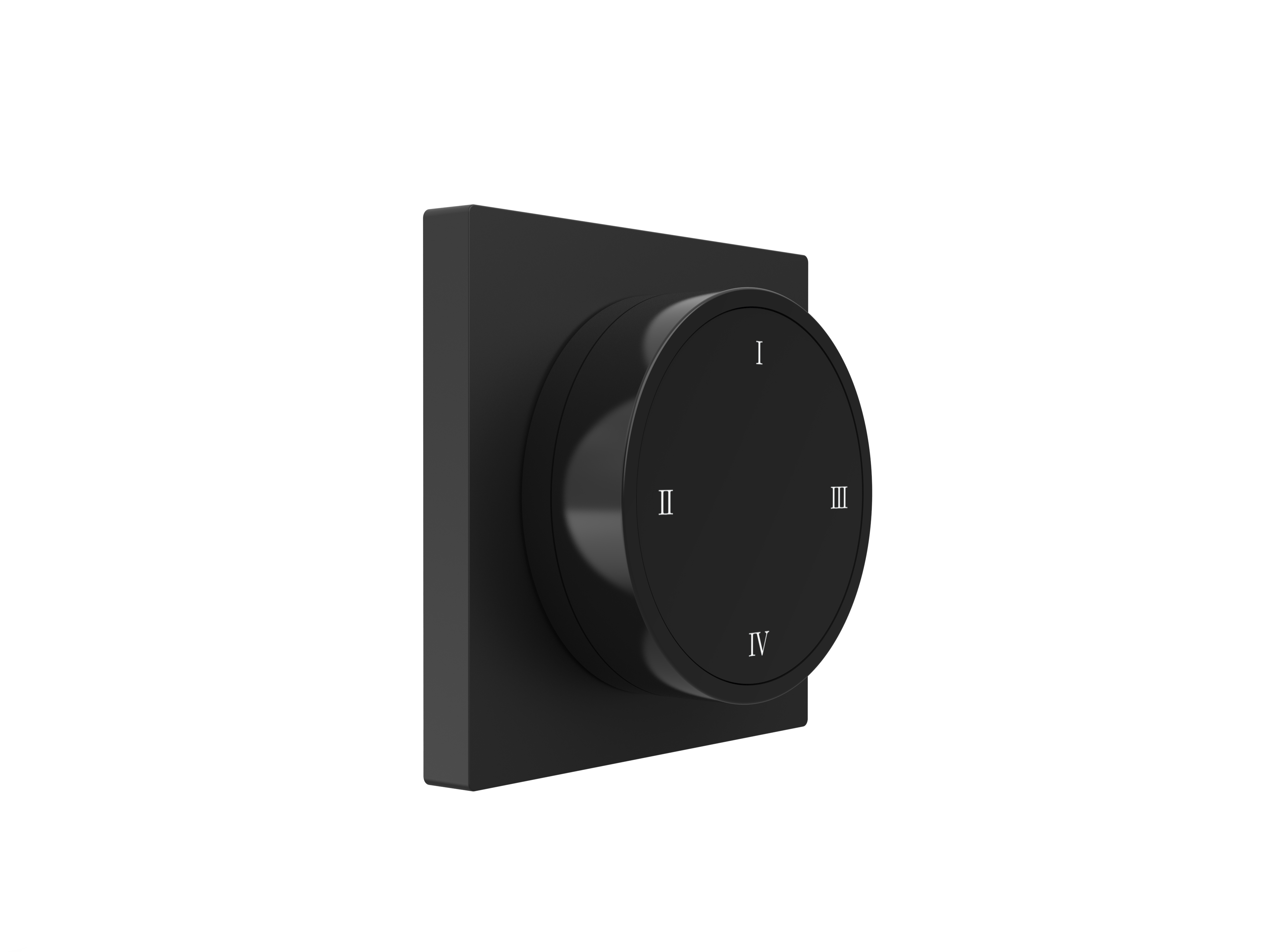

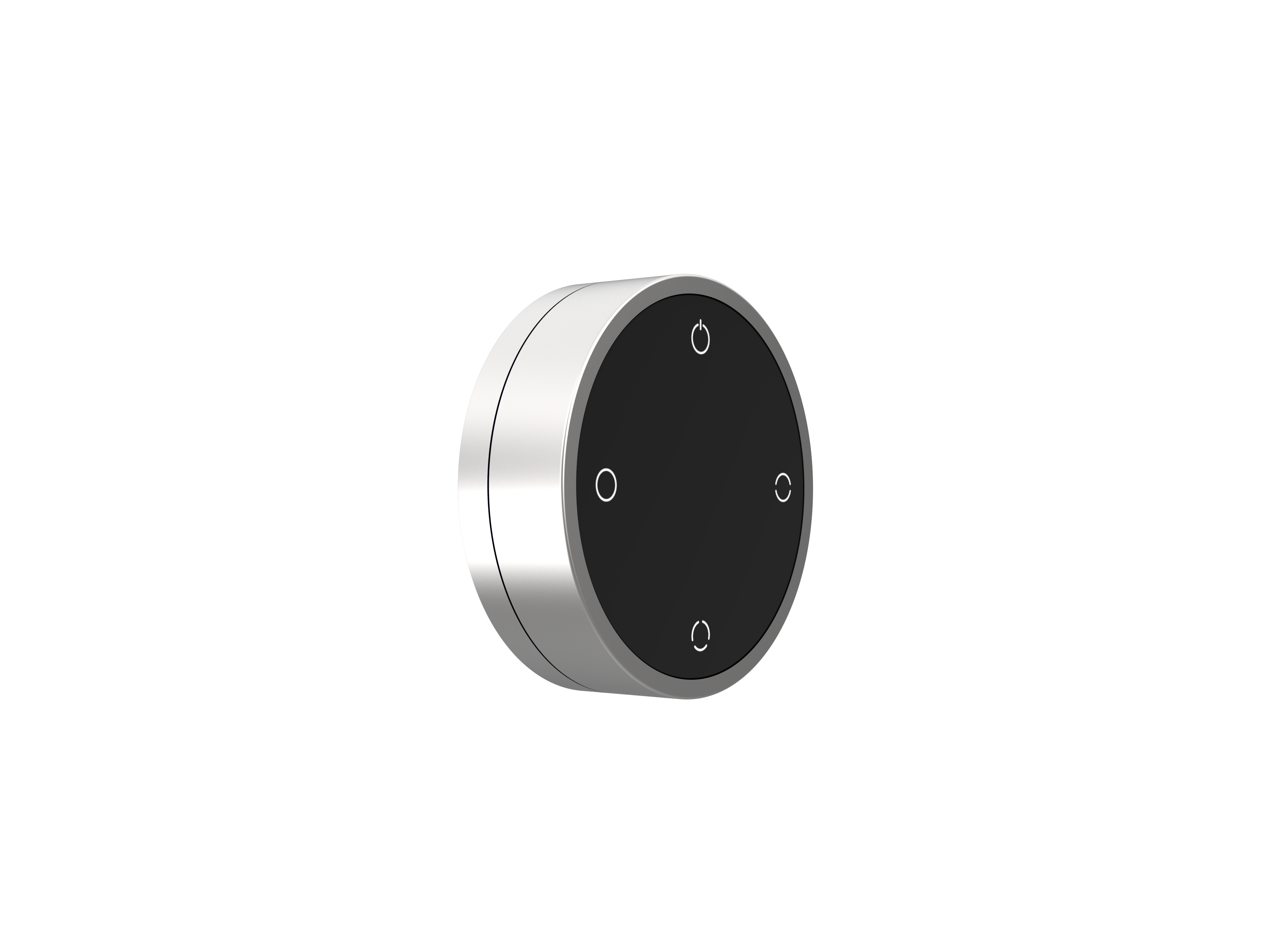

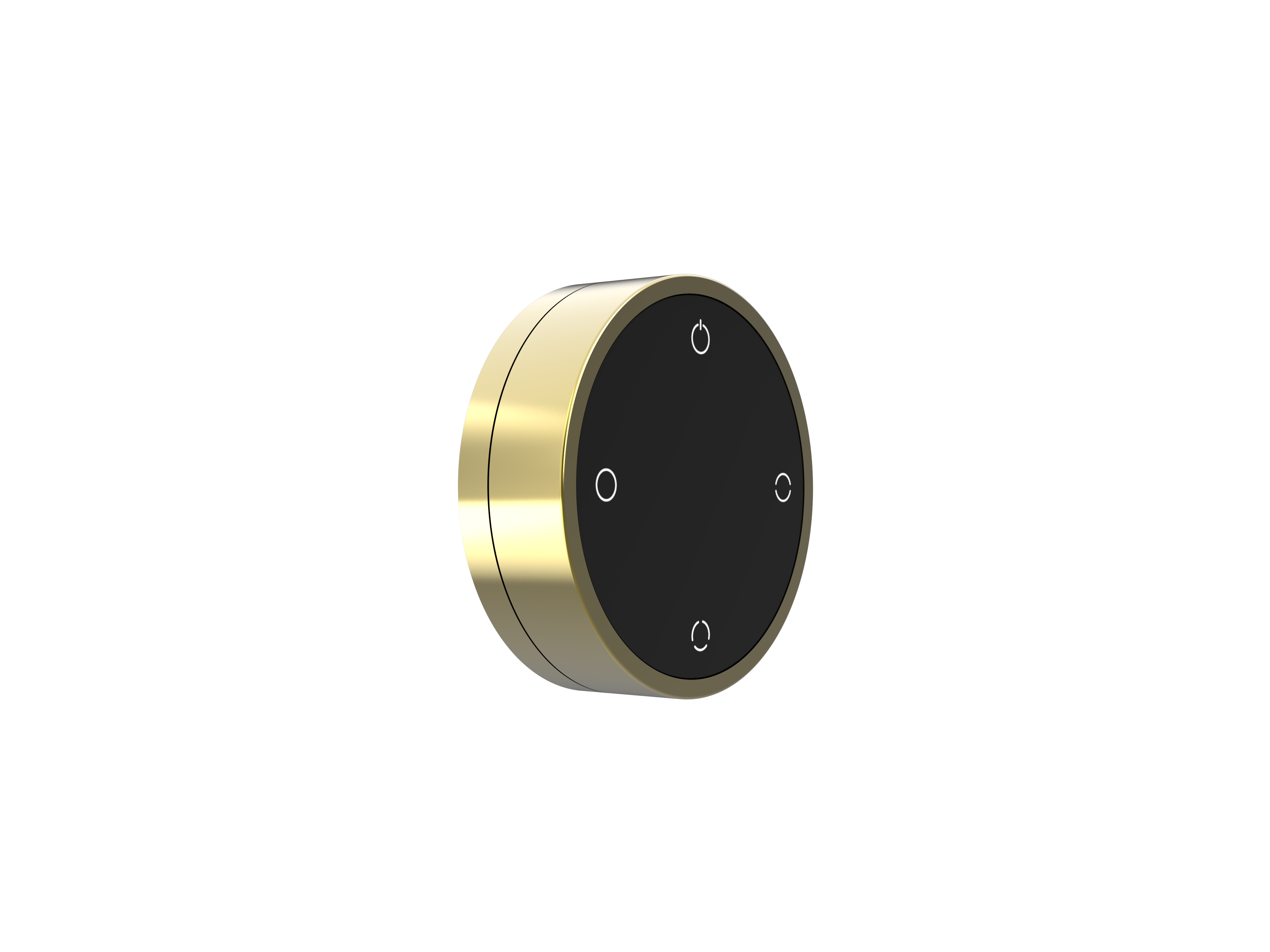

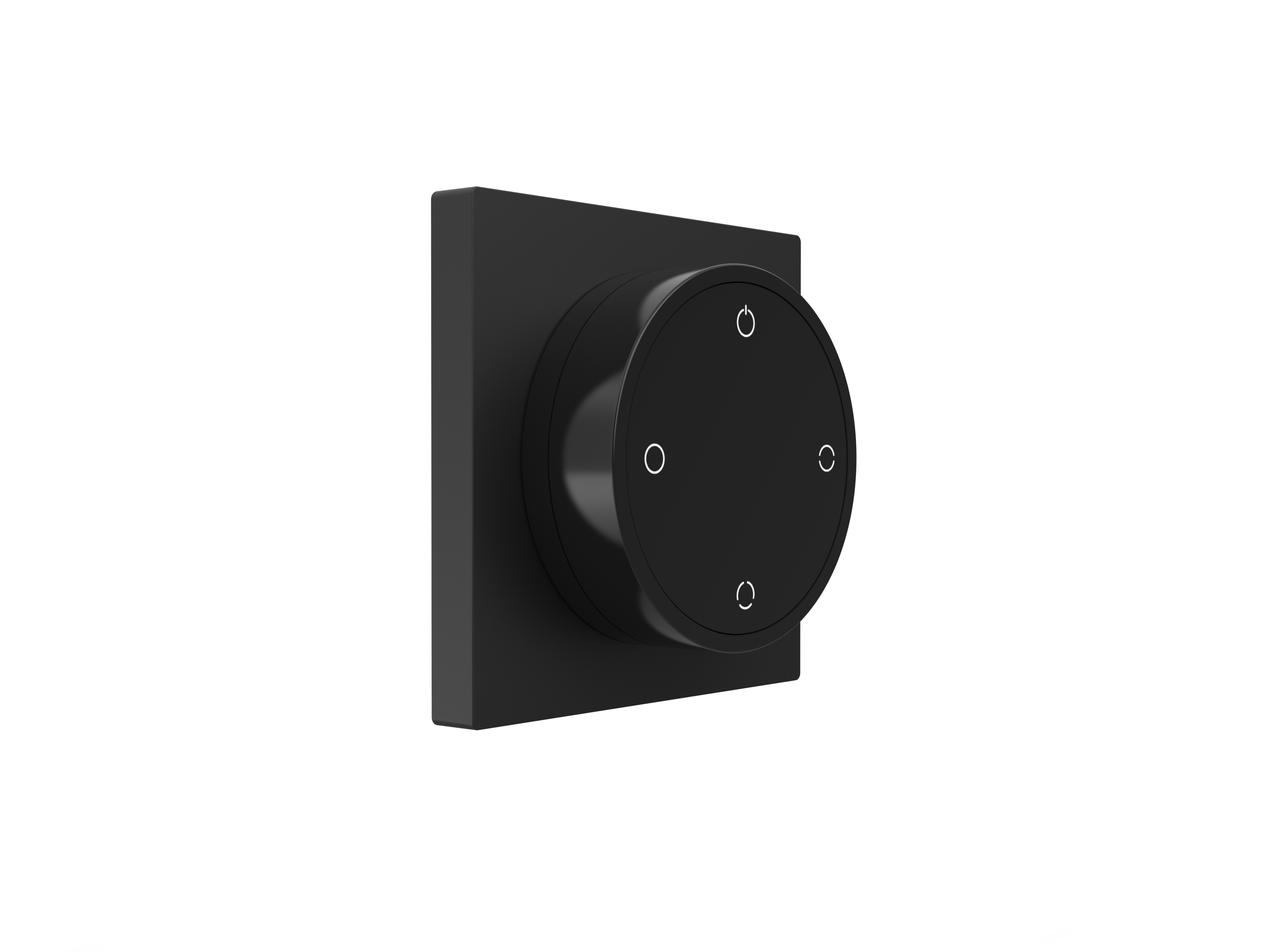

The VBA-RCS4 is a knob remote controller for CASAMBI lighting network. the main functions include:
· Control other CASAMBI ecosystem devices
· Control VLINCA VBD (driver) and VBU (bridge) devices
· Rotary for dimming up(clockwise) and down(counter-clockwise)
· 4 Preset buttons confgurable for Individual luminaire, scenes, groups, or all luminaires control
Dim up(turn rotary clockwise), Dim down(turn rotary anticlockwise):
• Smooth dimming of last chosen preset, by turn the rotary.
Preset buttons:
• Individual luminaire control
• Group control
• Control of all luminaires
• Recall scenes
• Recall animations
Technical data
Power supply mode |
• Lithium Battery powered • Chargeable |
Battery | • Capacity: 600mAh • Type: Lithium-ion, 3.7V • Charge: Type-C PD (5V) |
Operating conditions | • Operating temperature: 0°C... +40°C • Storage temperature: -25°C... +50°C • Max relative humidity: 0...65%, non - cond. |
Radio Transceiver | • Operating frequencies: 2.402...2.480 GHZ • Maximum output power: +7dBm • Wireless range, in open air ≥ 50 m |
Physical parameter |
• Dimensions: Ø65 x23mm • Weight: 202g • Degree of protection: IP20 (indoor use only) • Color: BK (Black) LG (Light Gold) BS (Brushed Stainless Steel) BC (Bright Chromium) |
Certifications | • CE • RCM |
Life time |
• 5 years |
